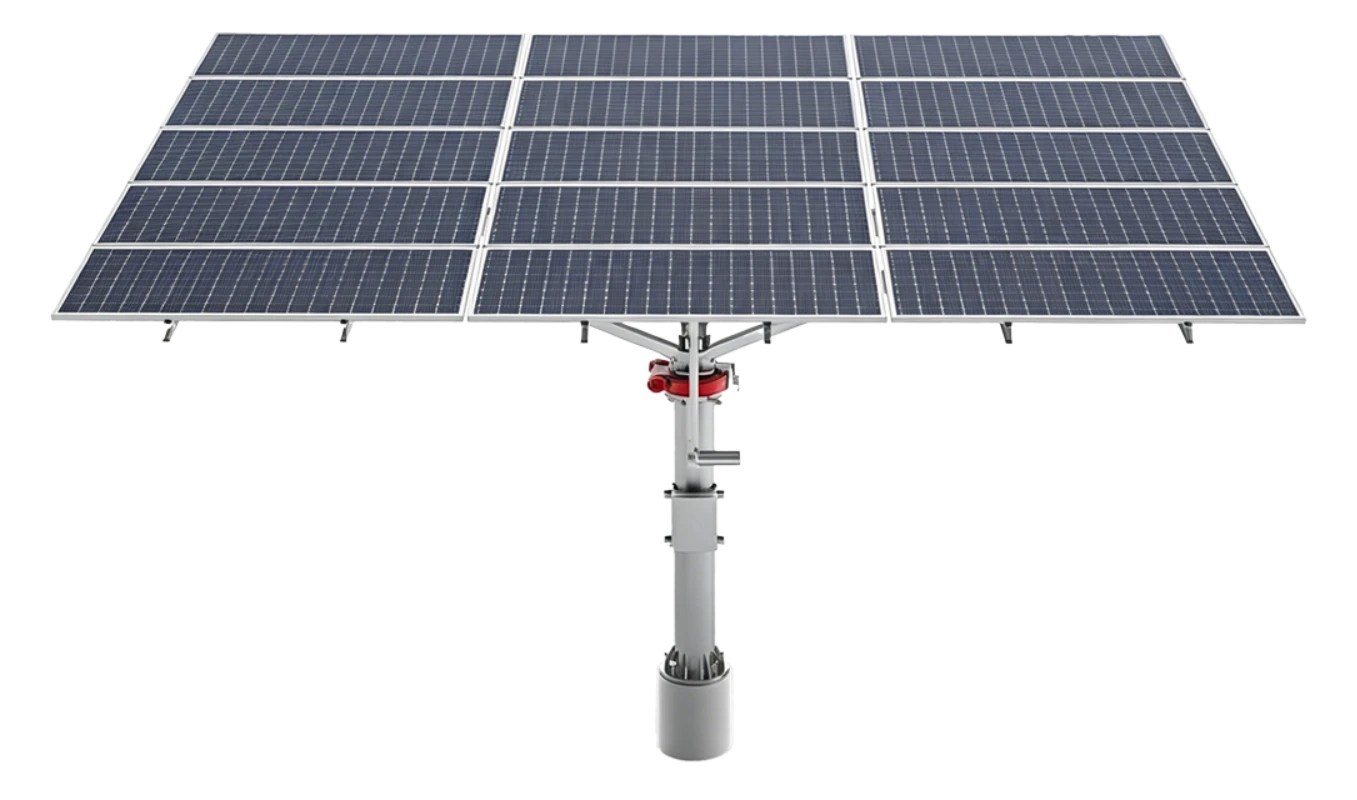

Dual axis tracker
A dual-axis tracker rotates panels along both horizontal and vertical axes, following the sun precisely throughout the day and across seasons. Delivers the highest energy yield among all tracker types.
- Best for:High-DNI regions, projects with space constraints, maximum yield requirements, research/demo sites.
Structural Features
- Up to 40% more energy output
- Perfect for high-DNI regions
- Dual-axis precision tracking
Technical Parameters
| Material | HDG / ZAM / Weathering steel / Aluminum |
| Material of fasteners | Carbon steel、 stainless steel |
| Installed base | Prefabricated pile or cast-in-place pile |
| Tracking range | Pitch angle 0-70 °, horizontal angle ± 90 ° |
| Wind load | 60m/s |
| Snow load | 1.6KN/m² |
| Component layout method | Horizontal or vertical |
| OEM/ODM | Accept |
| Service life | 25 years |
Custom Solar Panel Mounts Options
You can flexibly customize the material, coating, length, height, width, thickness, style, and color of the rooftop photovoltaic bracket.
Material
Common material options include aluminium alloy, stainless steel, and galvanized steel, all sourced from reputable domestic suppliers. The material type can be customized to match specific environmental conditions and structural load requirements.
Coating
A broad selection of anti-corrosion coatings is available, including hot-dip galvanizing, zinc-aluminium-magnesium, spray painting, and baking paint, to suit different environmental conditions.
Style
The bracket structure is sturdy and durable, with customizable design options to fit project needs, and offers a service life of up to 25 years.
Thickness
Thickness can be customized to accommodate various load-bearing requirements across different installation sites.
Height
Height can be flexibly adjusted, with our technical team providing professional guidance to meet specific site clearance or elevation requirements.
Color
Multiple spray-paint colors are offered, allowing the system to blend seamlessly with surrounding environments or architectural aesthetics.
