Product By Shapes
Steel profiles – are cold-formed from high-strength steel coils. They provide the structural support for solar panels while offering advantages in strength, weight reduction, and corrosion resistance.

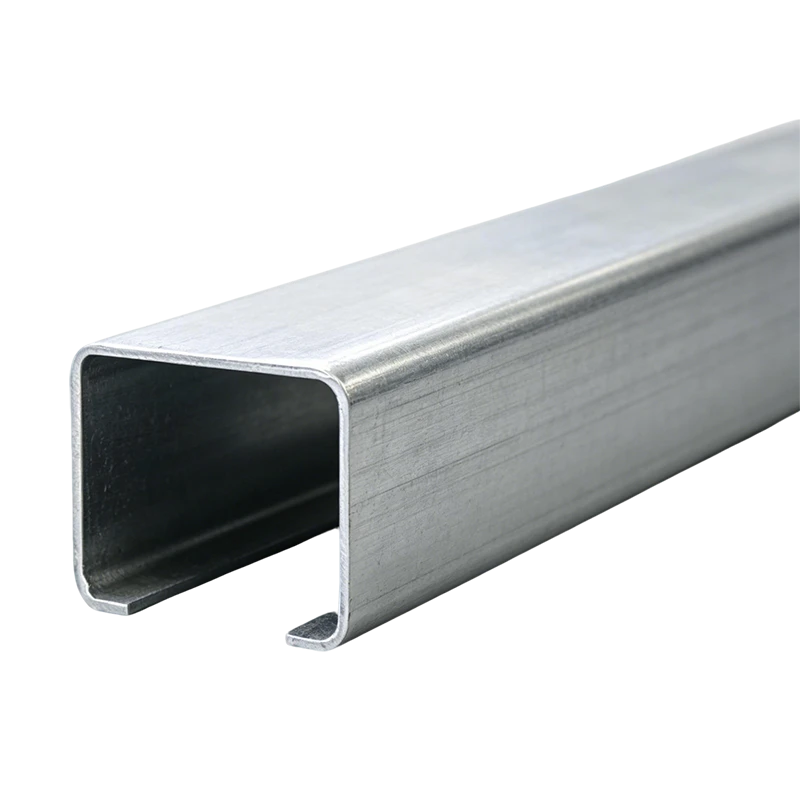

C Channel

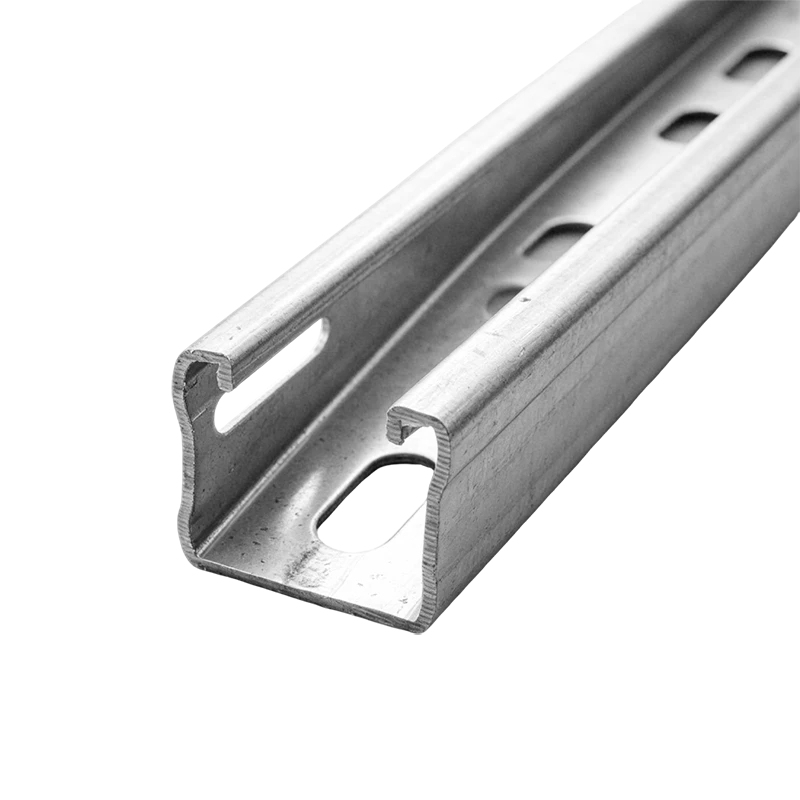

U Channel

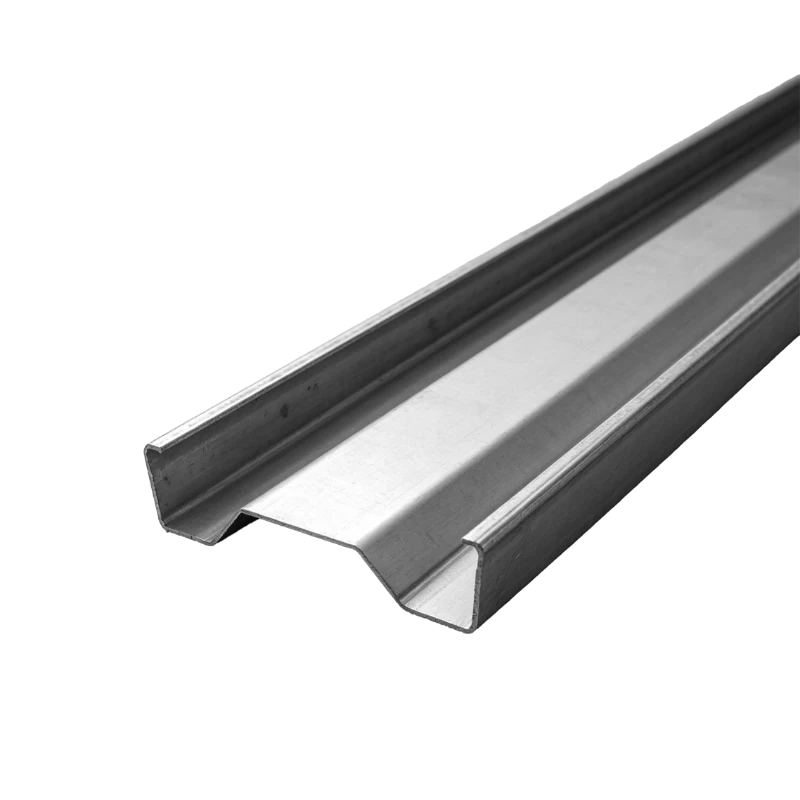

M Channel

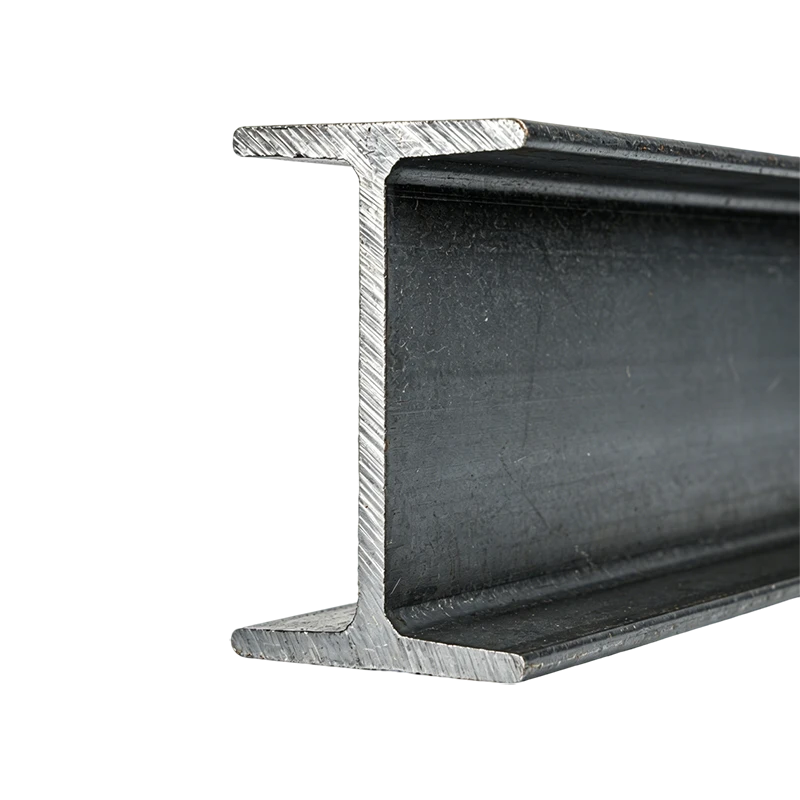

I Channel

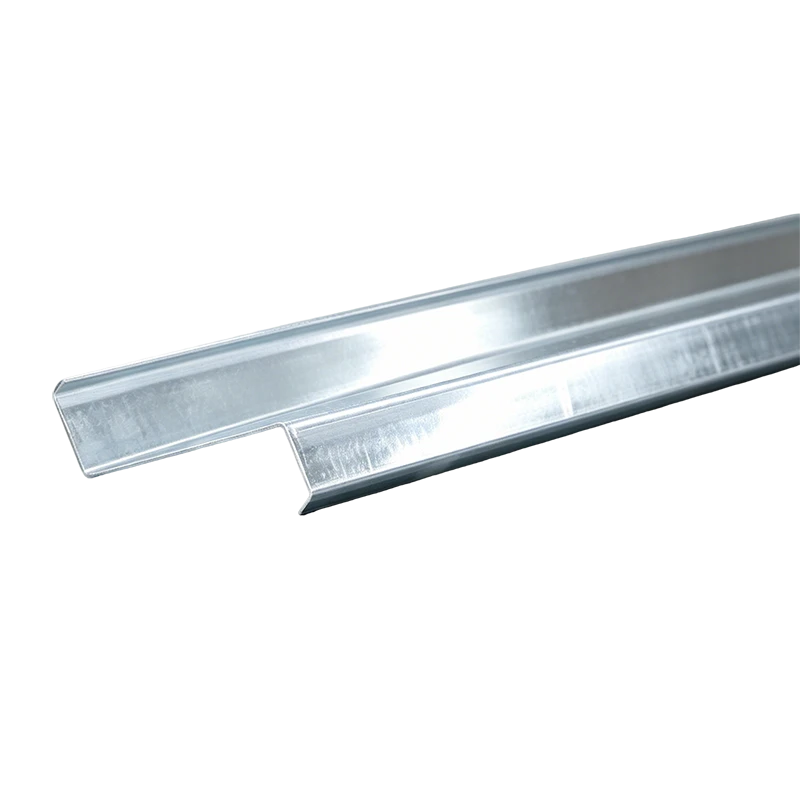

Z Channel

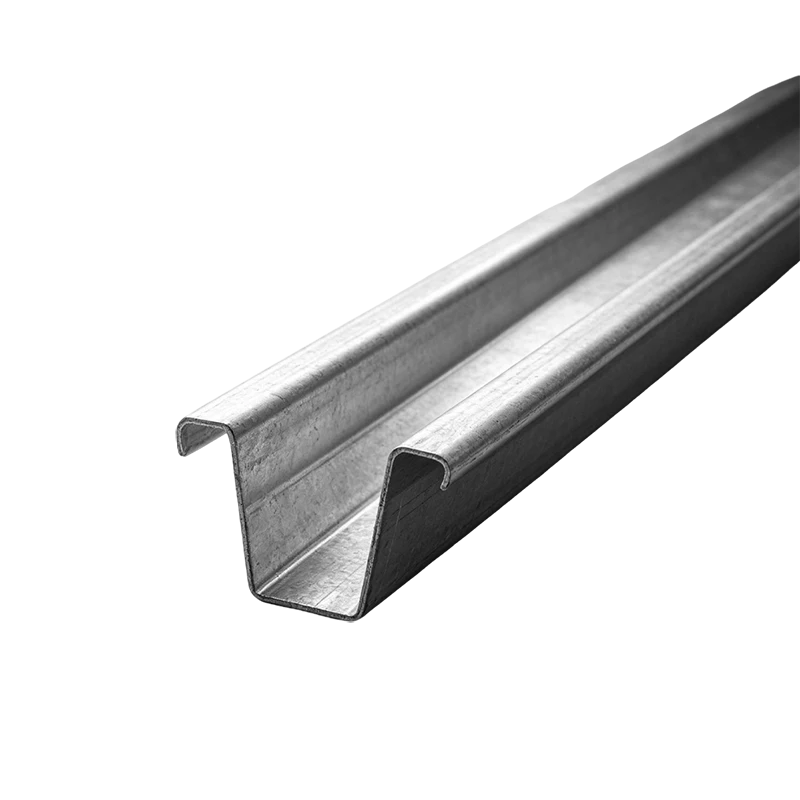

Hat Channel

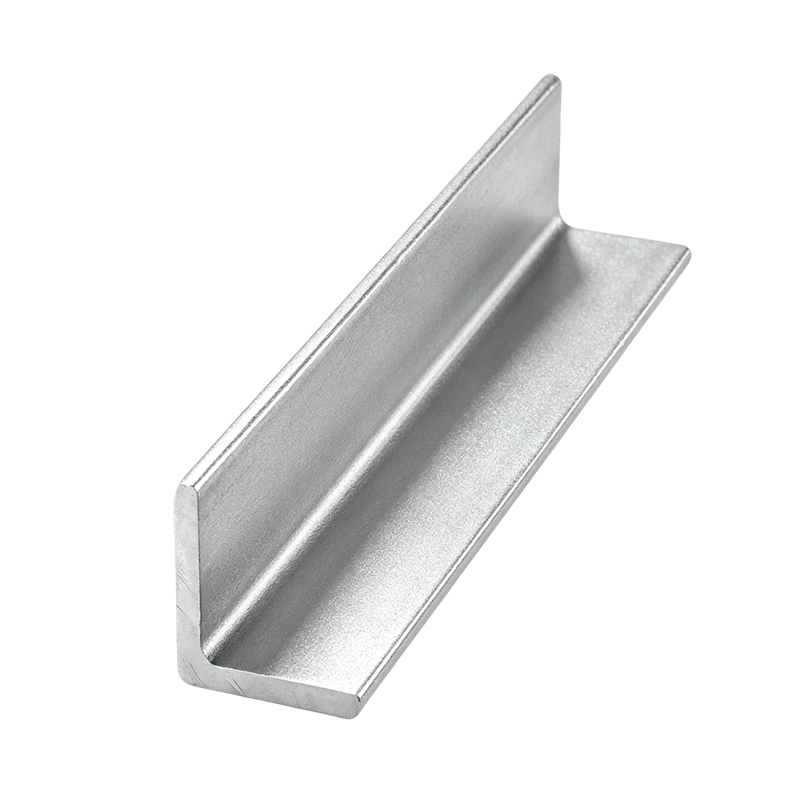

Angle steel
Steel Material Options – ZAM, HDG & Black Steel

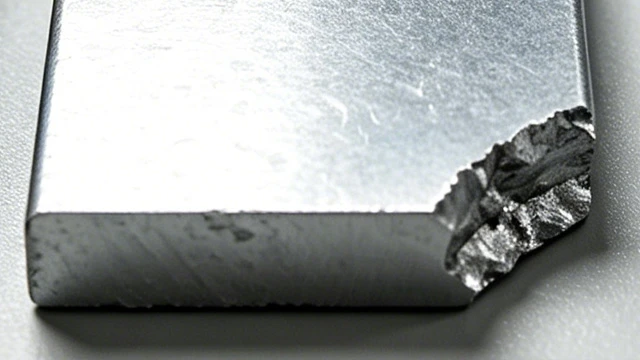

Zn-Al-Mg

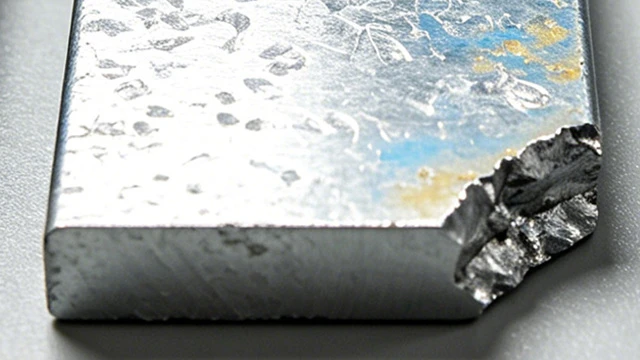

HDG Coating

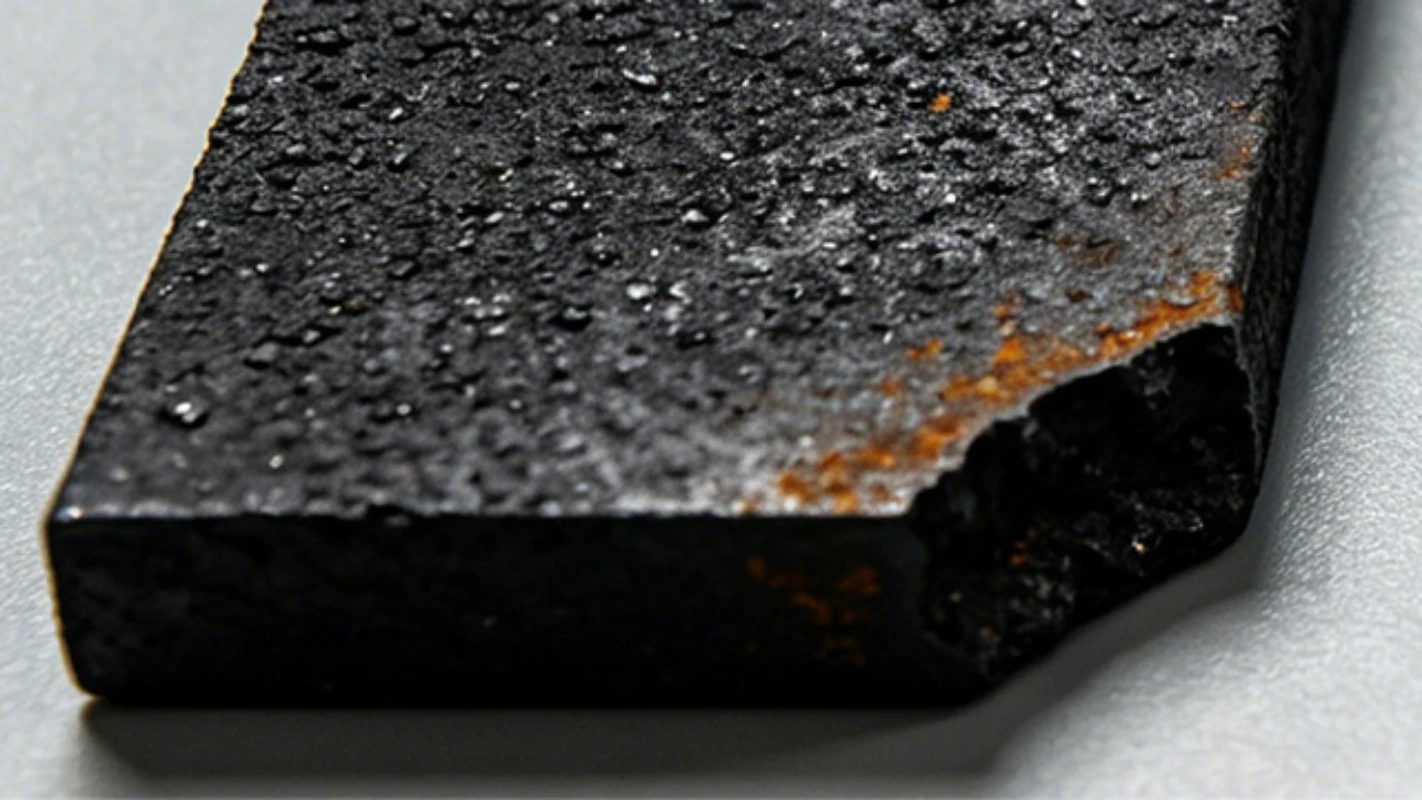

Black Steel
Higher upfront cost = longer life and lower maintenance. Choose ZAM for harsh environments, galvanized for standard projects, black steel for non-outdoor use.
Technical Parameters
| Profile Types | C，U，M，I，Z Channel |
| Process | Cold Roll Forming |
| Material | HDG / ZAM / Weathering steel |
| Size | Standard or Customized |
| Design Wind Load | ≤60 m/s |
| Design Snow Load | ≤1.5 kN/m² |
| Length | Customizable, typically 6–12 meters |
| OEM/ODM | Accept |
Production process
Six steps from steel coil to finished solar bracket. Full quality control at every stage.

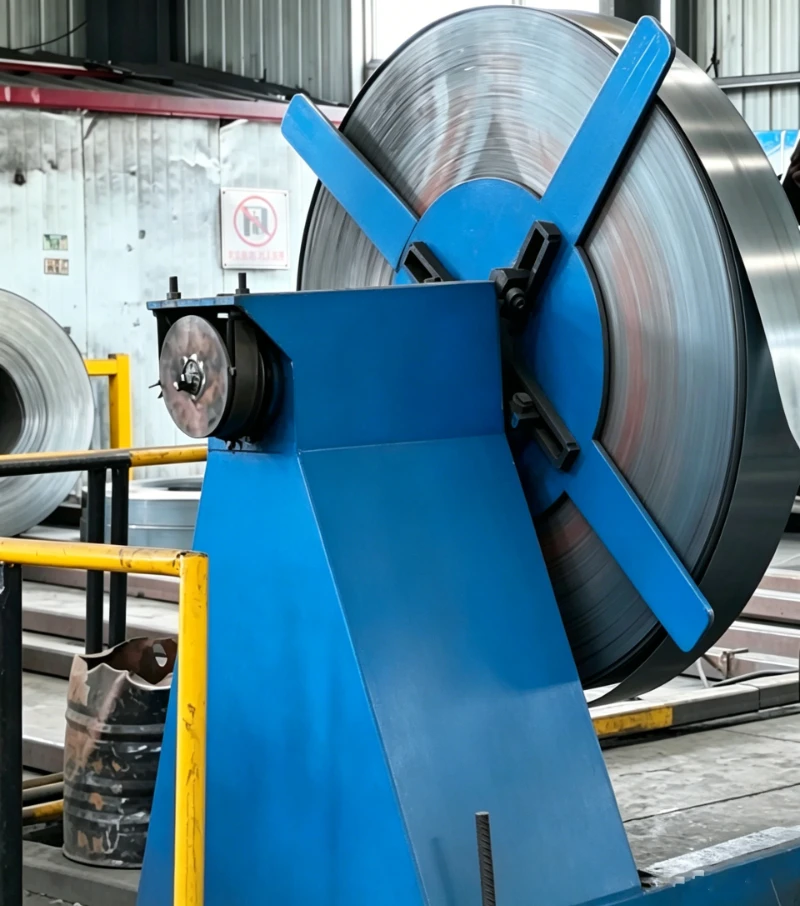

Step 1: Uncoiling
Steel coils are loaded and fed into the production line.

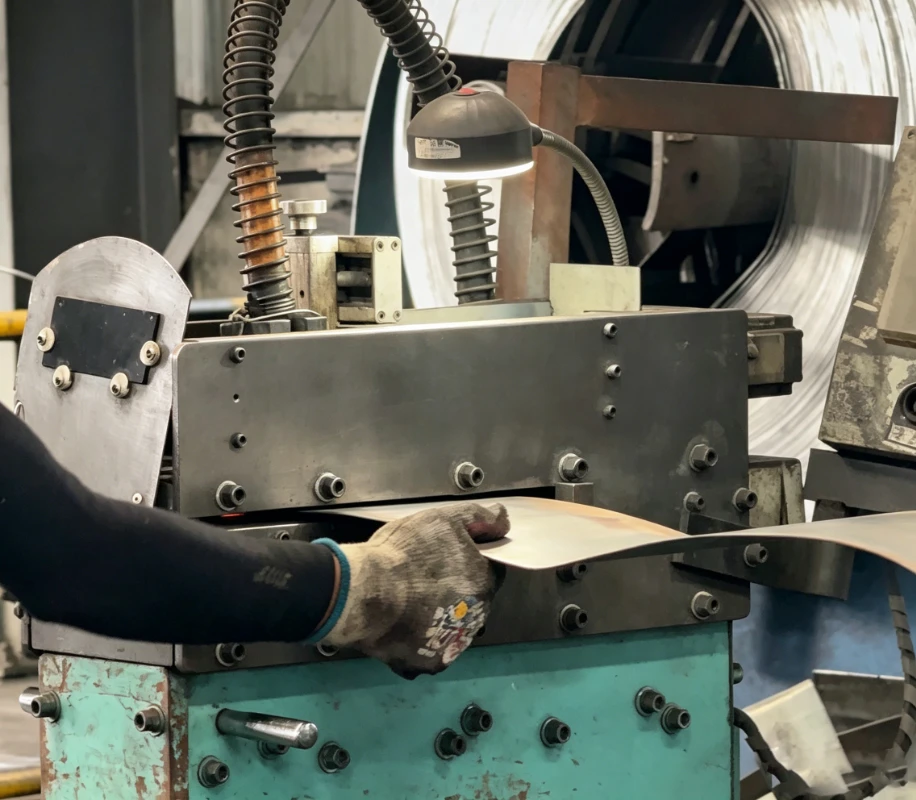

Step 2: Edge Trimming & Welding
Edges are trimmed for accuracy; coil ends are welded for continuous processing.

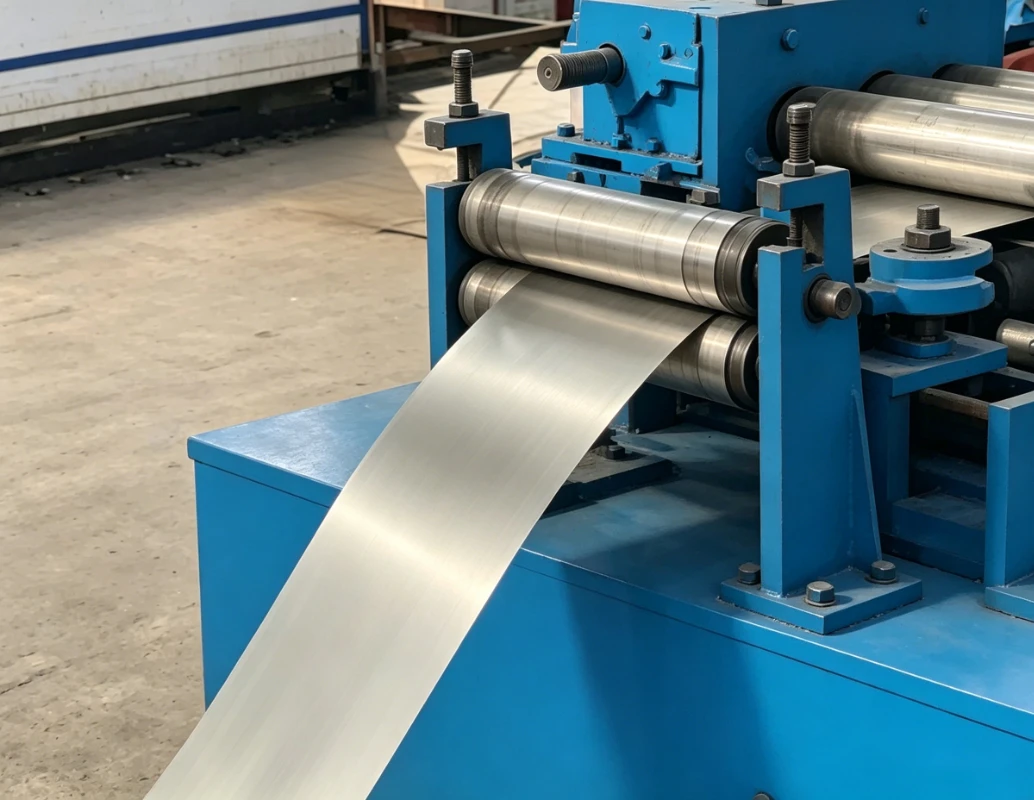

Step 3：Straightening
Profiles are straightened to ensure dimensional accuracy.

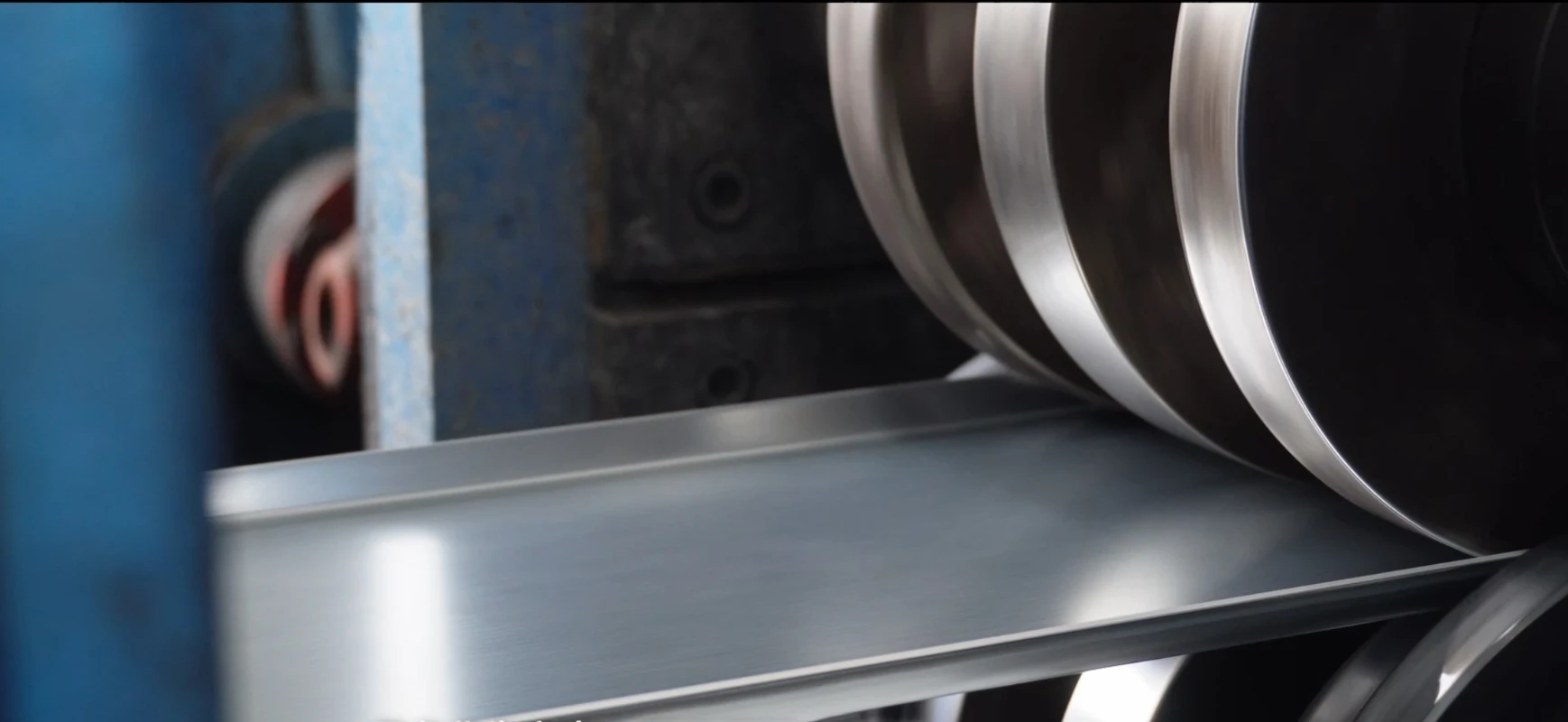

Step 4：Cold Roll Forming
Steel strip passes through progressive rollers to form C/Z/U profiles.

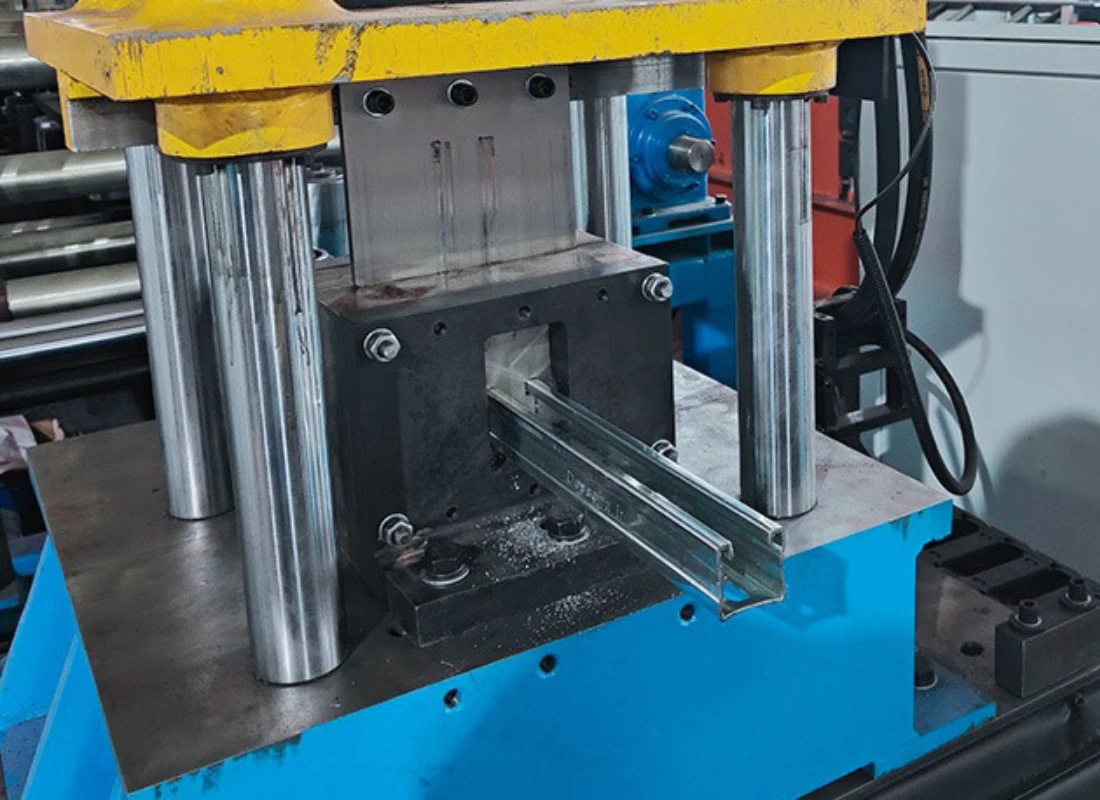

Step 5: Cutting
Profiles are cut to custom lengths per order specifications.

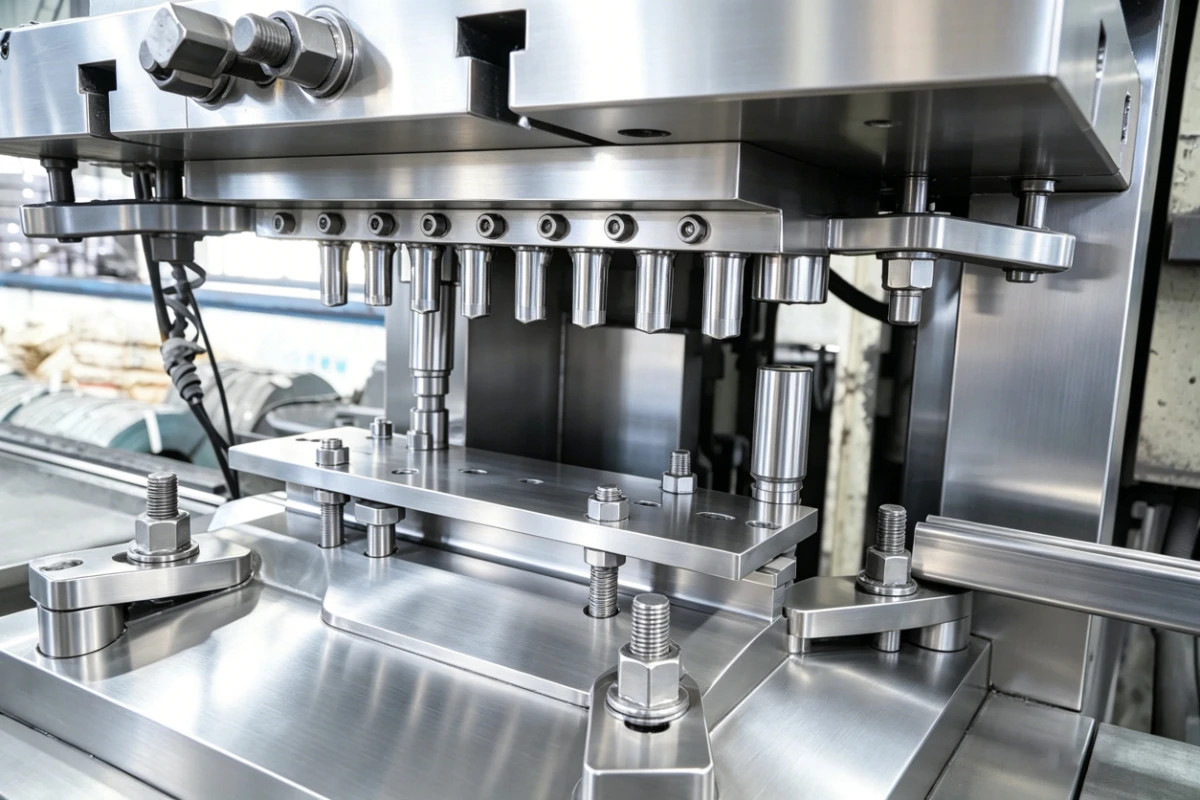

Step 6: Punching
Mounting holes are precisely punched to match solar bracket connectors.
Applications – Where Our Steel Profiles Are Used
From utility-scale ground farms to commercial rooftops – our profiles deliver reliable performance in every environment.

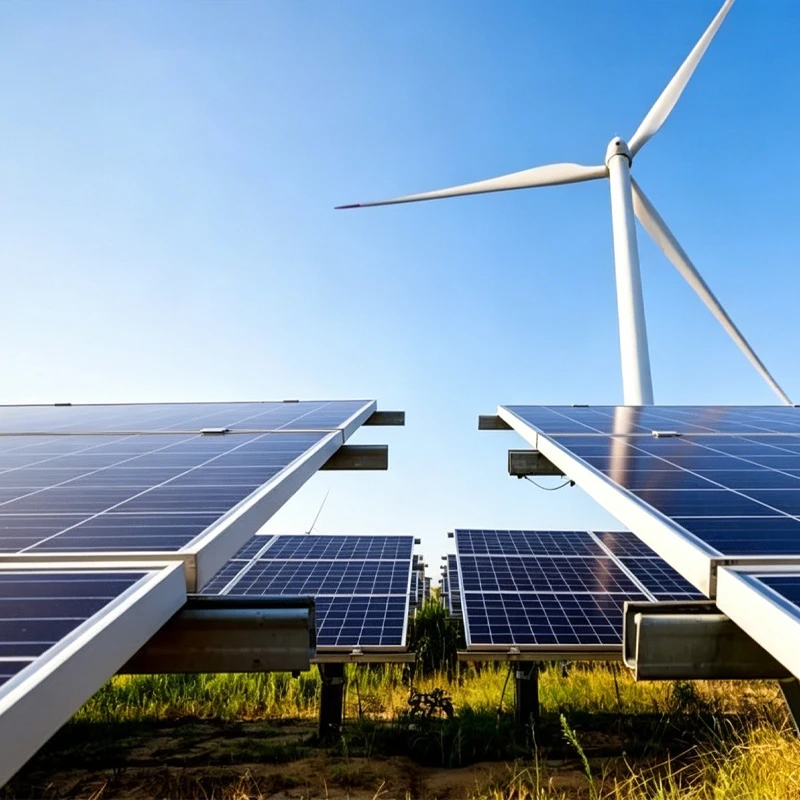

Ground-Mounted Solar
C · Z

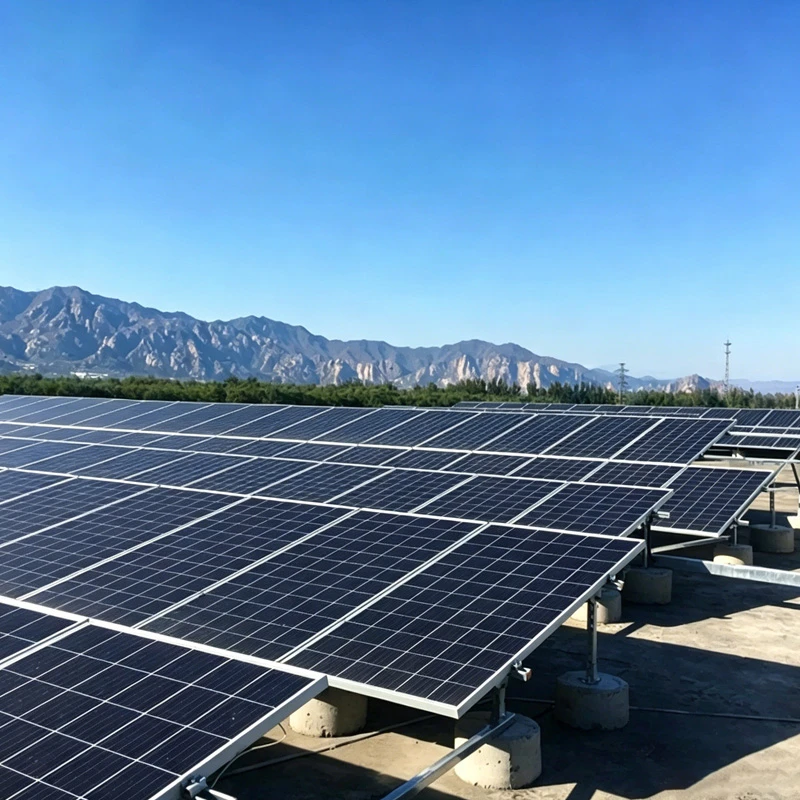

Rooftop Commercial Projects
C · U

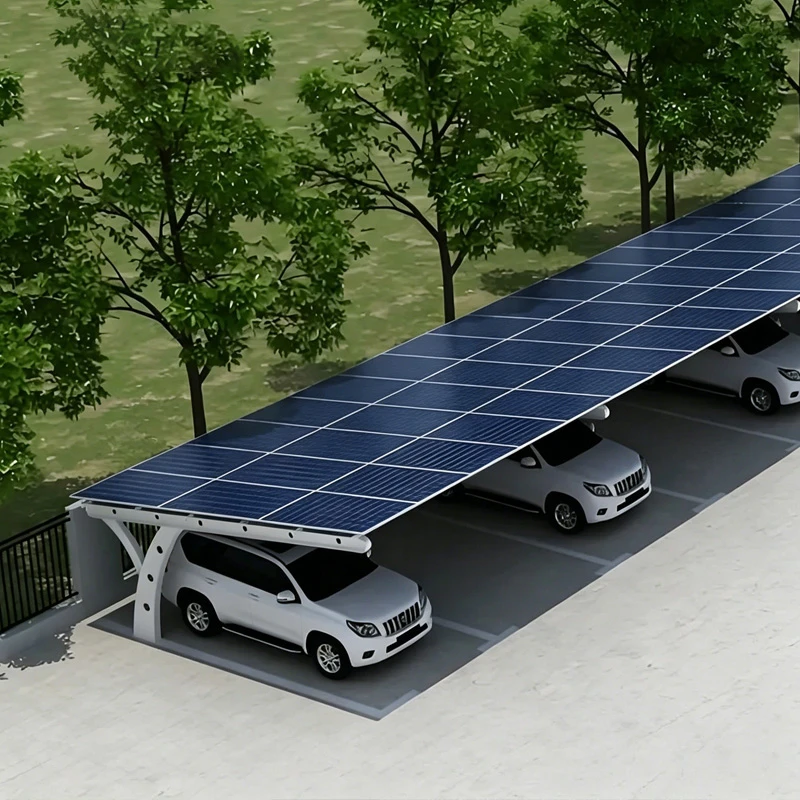

Solar Carports
C · Z · Custom Shapes

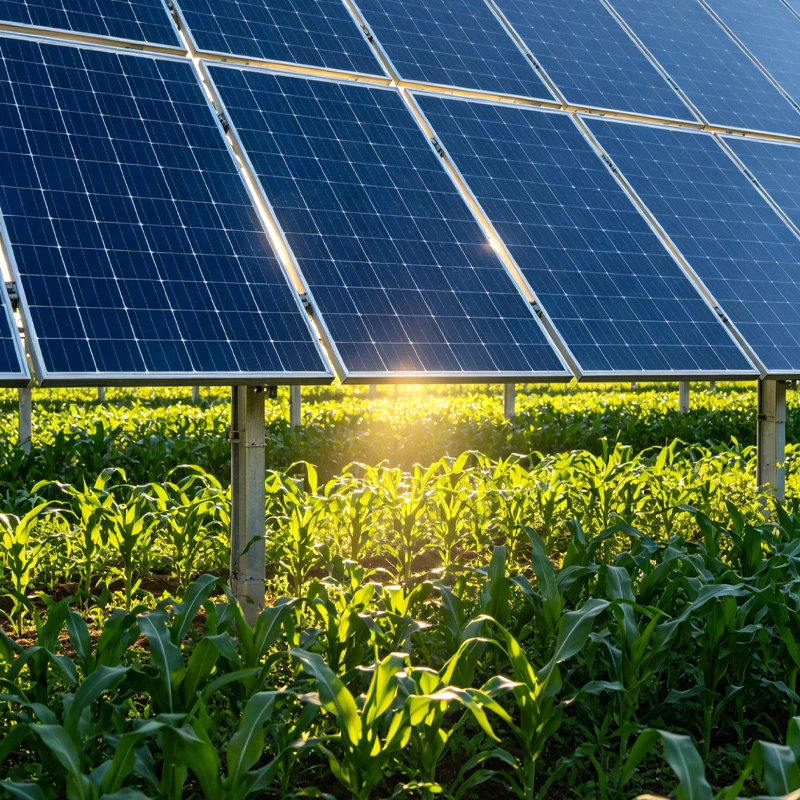

Agrivoltaic & Fishery-PV
Z· Custom Shapes
Custom Solar Panel Mounts Options
You can flexibly customize the material, coating, length, height, width, thickness, style, and color of the rooftop photovoltaic bracket.
Material
Common material options include aluminium alloy, stainless steel, and galvanized steel, all sourced from reputable domestic suppliers. The material type can be customized to match specific environmental conditions and structural load requirements.
Coating
A broad selection of anti-corrosion coatings is available, including hot-dip galvanizing, zinc-aluminium-magnesium, spray painting, and baking paint, to suit different environmental conditions.
Style
The bracket structure is sturdy and durable, with customizable design options to fit project needs, and offers a service life of up to 25 years.
Thickness
Thickness can be customized to accommodate various load-bearing requirements across different installation sites.
Height
Height can be flexibly adjusted, with our technical team providing professional guidance to meet specific site clearance or elevation requirements.
Color
Multiple spray-paint colors are offered, allowing the system to blend seamlessly with surrounding environments or architectural aesthetics.
Can’t Find the Product You’re Looking For?
Contact our team to explore additional products, custom options, and tailored solutions.
