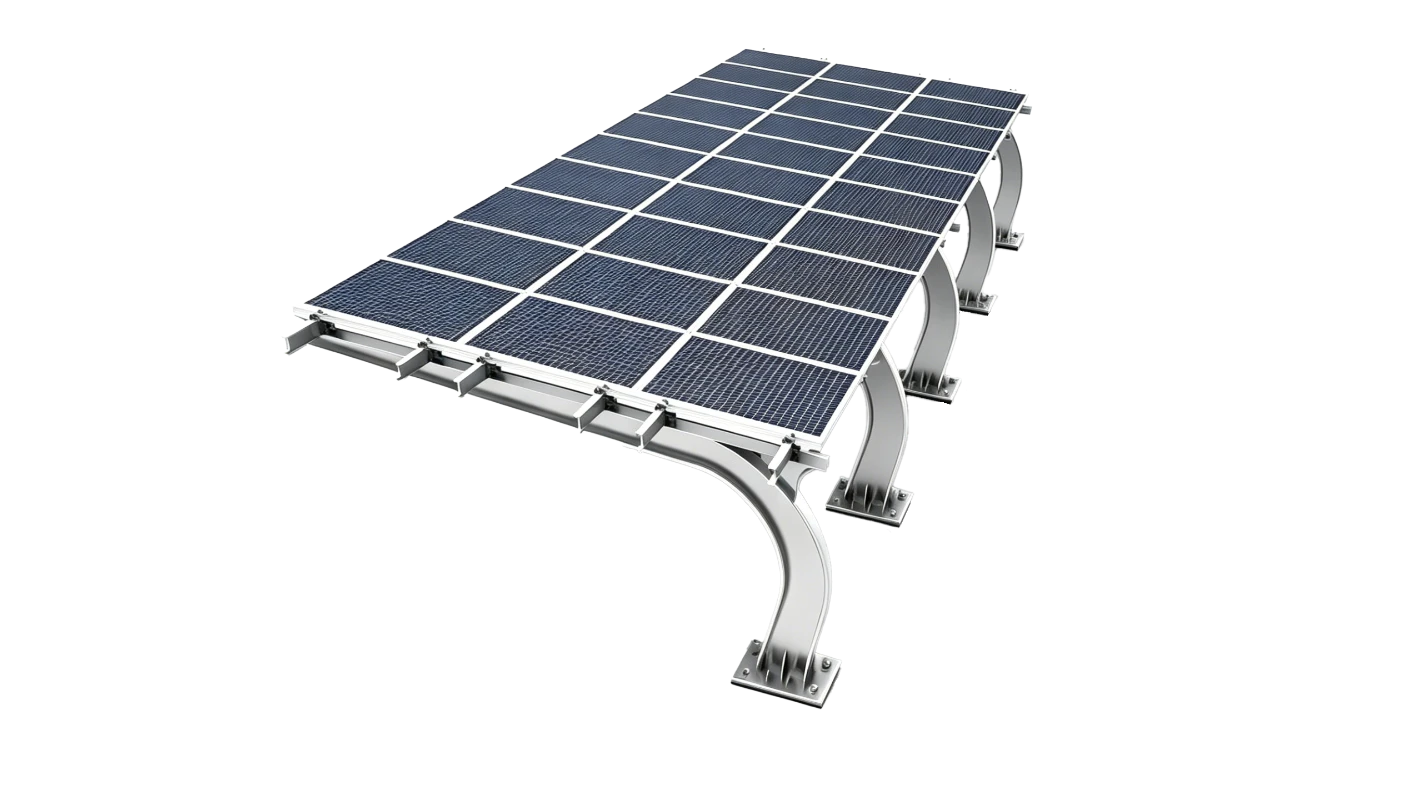

Single Cantilever
- Benefits: Wide-open view, easy in and out, no door or mirror blockage.
- Best for: Homes, small offices – those who want a clean, simple look and a great parking experience.
Pre-stressed Pipe Piles (Driven Piles)
- Benefits: Very sturdy structure, high wind and snow resistance, easy EV charger installation.
- Best for: Large parking lots, coastal windy areas, sites requiring DC fast charging.
BIPV
- Benefits: Seamless, flat surface as modern as a glass curtain wall, better waterproofing.
- Best for: High-end communities, commercial plazas, hotels – new projects where aesthetics matter.
Structural Features
Engineered for Structural Safety and Vehicle Clearance
-
Superb surface treatment process ensures excellent corrosion resistance of the system.
-
Structured design with outstanding waterproof performance.
-
Suitable for charging electric vehicles, electric bicycles, and other devices.
Technical Parameters
| Material | Carbon Steel, Aluminum Alloy, or Custom |
| Surface Treatment | Hot-dip Galvanizing / Zinc-Aluminum-Magnesium (ZAM) / Weathering Steel (Corten) / Powder Coating / Anodizing |
| Size | Standard or Custom Sizes Available |
| Material Grade | S235, S355 |
| Max. Wind Load | ≤ 60 m/s |
| Max. Snow Load | ≤ 1.5 kN/m² |
| Tilt Angle | 0° – 10° |
| Installation Methods | Anchor Bolt / Welding / Embedded / Screw Pile Connection |
| Waterproof Options | Available Upon Request |
| Key Advantages | Fast Installation, Outstanding Weather Resistance, Highly Cost-Effective |
| Customization | Full OEM/ODM Services Accepted |

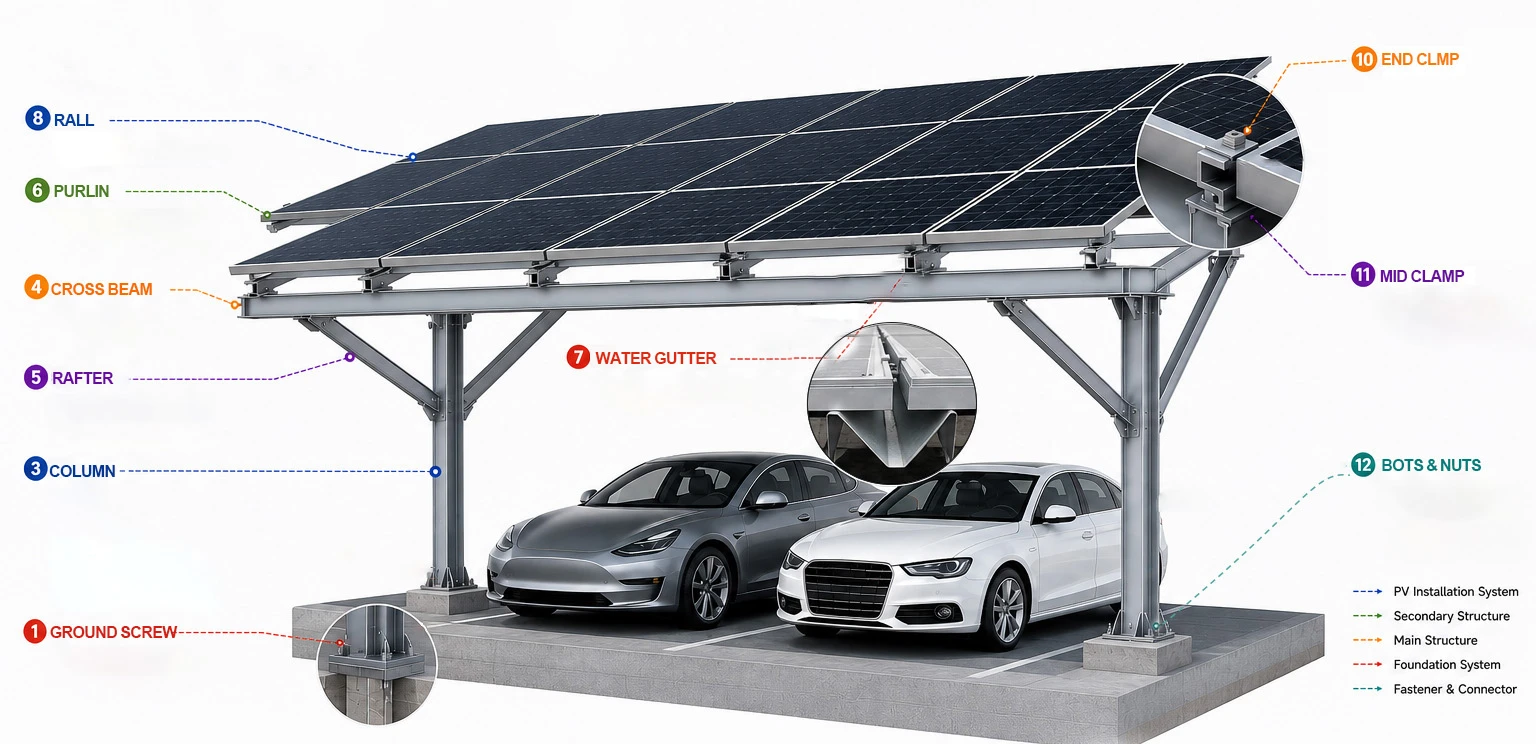

System Components Overview
Engineered Components for Solar Carport Structures
A solar carport mounting system is not defined by individual parts, but by how each component works together to ensure structural stability and long-term outdoor performance.
System Components Overview
A solar mounting system is not only defined by steel profiles, but by how each component works together to ensure structural stability, load transfer, and long-term outdoor performance.
Custom Solar Panel Mounts Options
You can flexibly customize the material, coating, length, height, width, thickness, style, and color of the rooftop photovoltaic bracket.
Material
Common material options include aluminium alloy, stainless steel, and galvanized steel, all sourced from reputable domestic suppliers. The material type can be customized to match specific environmental conditions and structural load requirements.
Coating
A broad selection of anti-corrosion coatings is available, including hot-dip galvanizing, zinc-aluminium-magnesium, spray painting, and baking paint, to suit different environmental conditions.
Style
The bracket structure is sturdy and durable, with customizable design options to fit project needs, and offers a service life of up to 25 years.
Thickness
Thickness can be customized to accommodate various load-bearing requirements across different installation sites.
Height
Height can be flexibly adjusted, with our technical team providing professional guidance to meet specific site clearance or elevation requirements.
Color
Multiple spray-paint colors are offered, allowing the system to blend seamlessly with surrounding environments or architectural aesthetics.
