Fishery PV

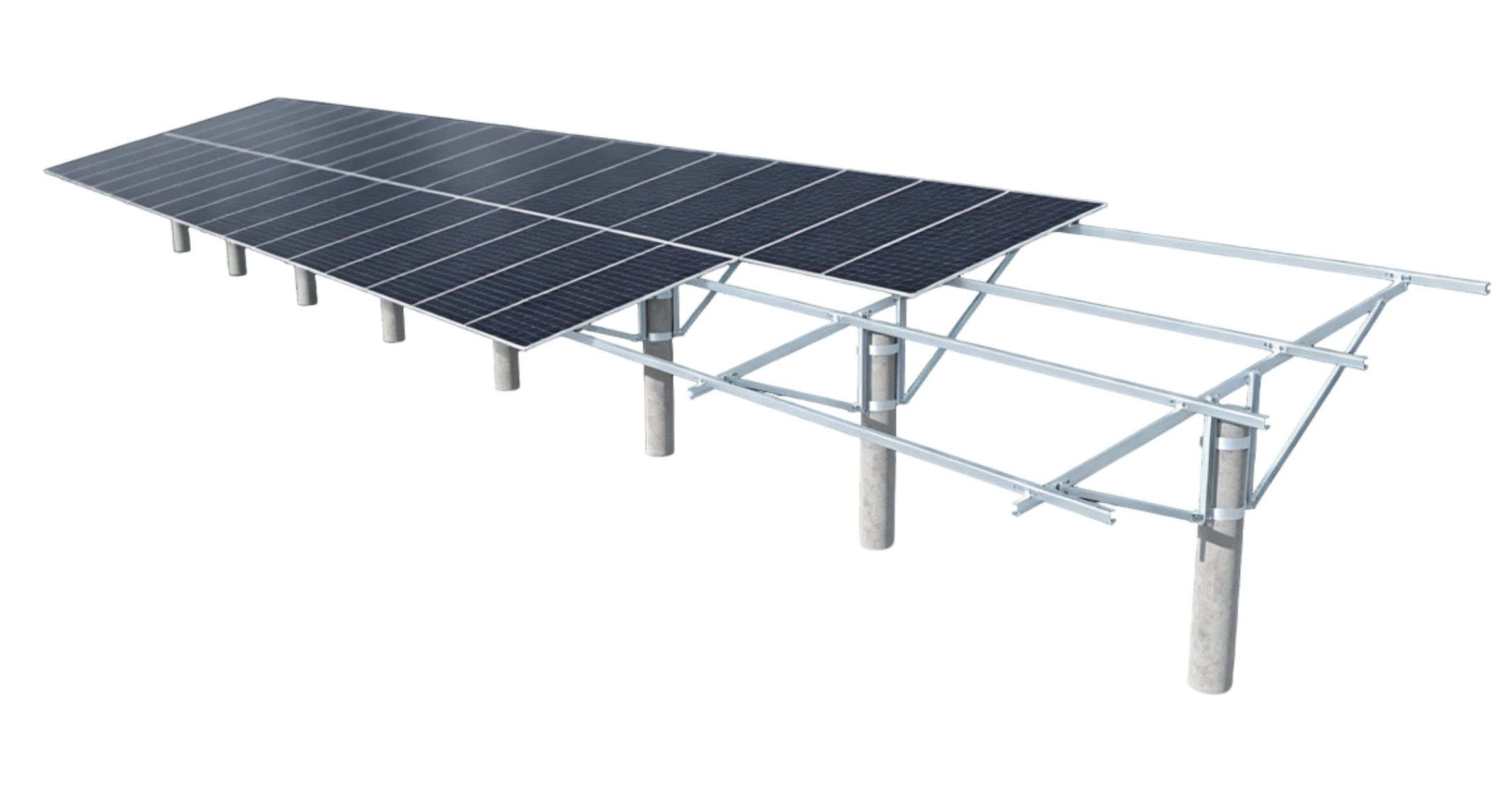

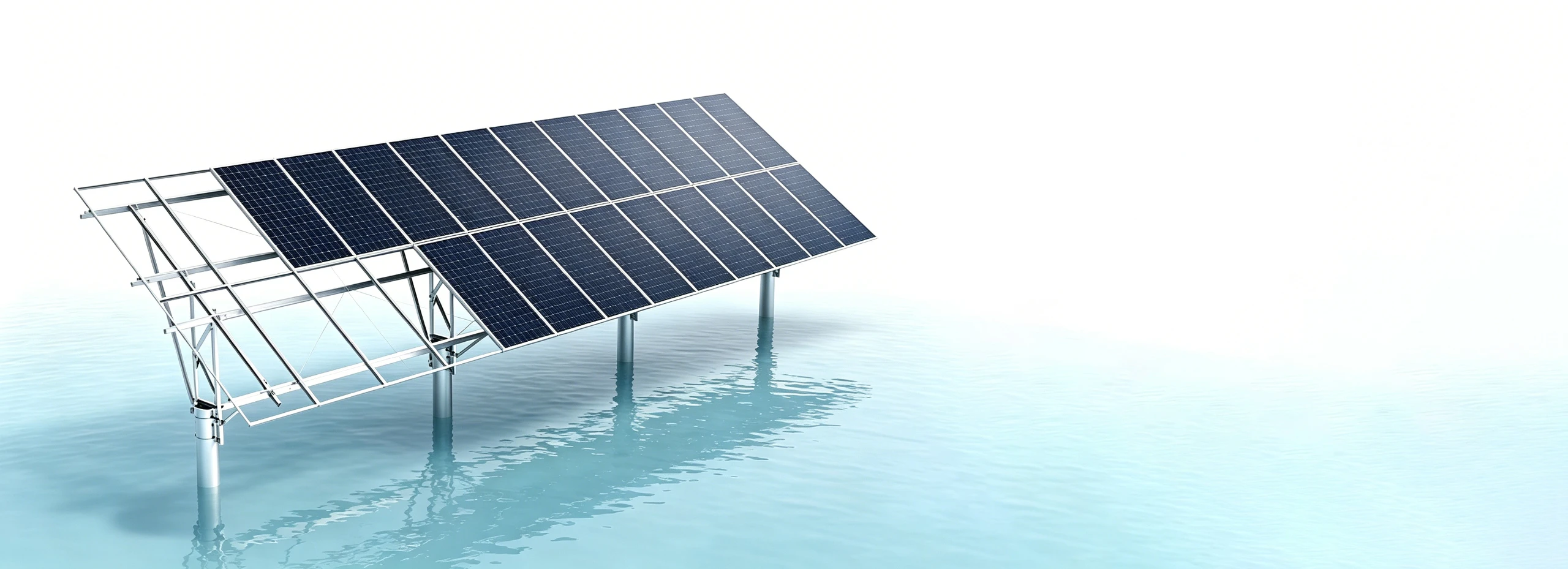

The pile‑supported aquavoltaic mounting system installs precast concrete piles or steel pipe piles into the bottom of fish/shrimp/crab ponds. Columns extend above water, supporting the PV mounting structure. With minimum panel clearance ≥2.5m, all aquaculture activities (aerators, feed boats, net fishing) continue without interruption. This is a proven “solar above, fish below” solution for shallow to medium‑depth water bodies.
PV above water · Fish below · One structure, double income.
- Pile-driven, fishing continues. No disruption to aquaculture operations.
- ZAM coating. 3–10x rust resistance. Built for wet environments.
Technical Parameters
| Material | HDG / ZAM / Weathering steel |
| Water depth | 1.5–5.0m (deeper on request) |
| Minimum clearance | ≥2.5m (2.5–5.0m adjustable) |
| Pile type | PHC concrete |
| Wind load resistance | ≤60 m/s (≤70 m/s on request) |
| Snow load | 1.0–1.5 kN/m² |
| Tilt angle | 5°–35° (fixed adjustable) |
| Pile spacing | Along row 4–8m; across rows 6–12m |
| OEM/ODM | Accept |
System Components Overview
A solar mounting system is not only defined by steel profiles, but by how each component works together to ensure structural stability, load transfer, and long-term outdoor performance.
Custom Solar Panel Mounts Options
You can flexibly customize the material, coating, length, height, width, thickness, style, and color of the rooftop photovoltaic bracket.
Material
Common material options include aluminium alloy, stainless steel, and galvanized steel, all sourced from reputable domestic suppliers. The material type can be customized to match specific environmental conditions and structural load requirements.
Coating
A broad selection of anti-corrosion coatings is available, including hot-dip galvanizing, zinc-aluminium-magnesium, spray painting, and baking paint, to suit different environmental conditions.
Style
The bracket structure is sturdy and durable, with customizable design options to fit project needs, and offers a service life of up to 25 years.
Thickness
Thickness can be customized to accommodate various load-bearing requirements across different installation sites.
Height
Height can be flexibly adjusted, with our technical team providing professional guidance to meet specific site clearance or elevation requirements.
Color
Multiple spray-paint colors are offered, allowing the system to blend seamlessly with surrounding environments or architectural aesthetics.
