What Are Mid Clamps & End Clamps?
Mid clamps and end clamps are essential components that secure solar panels to the mounting rails. They prevent panel movement under harsh weather conditions such as high winds and heavy snow loads.

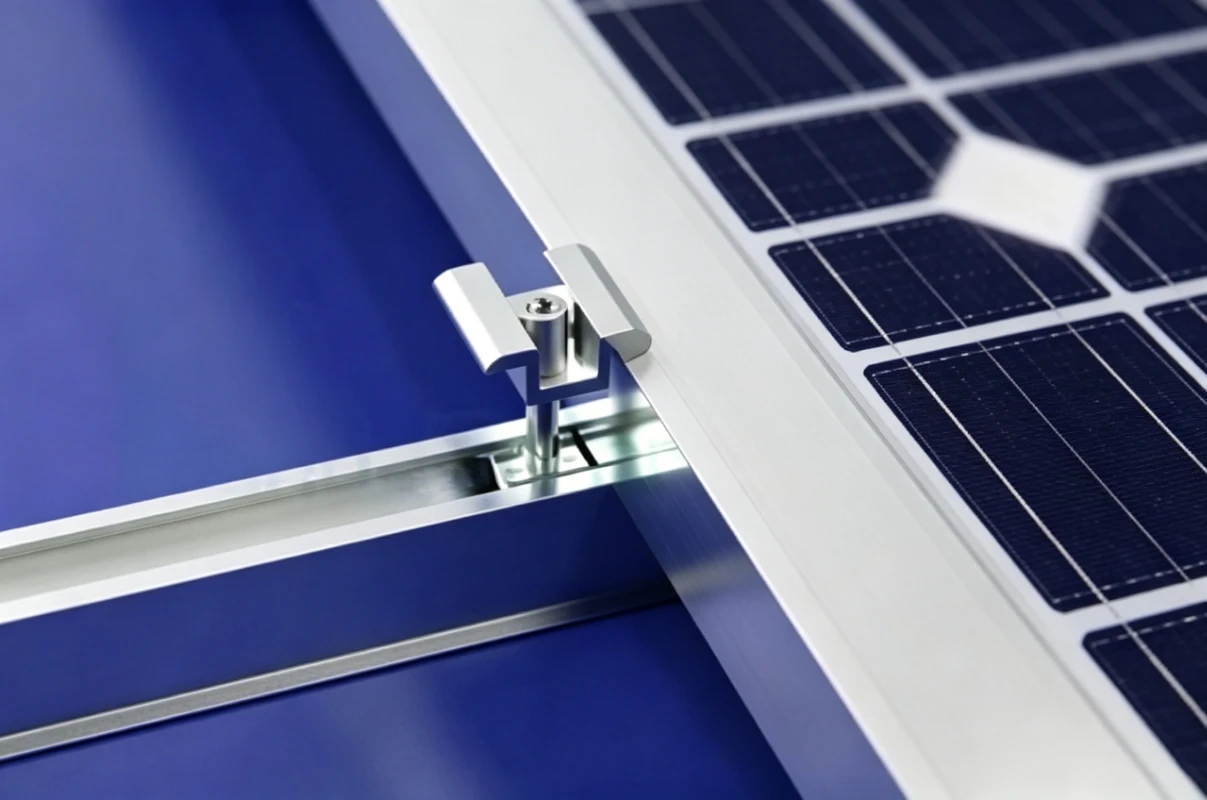

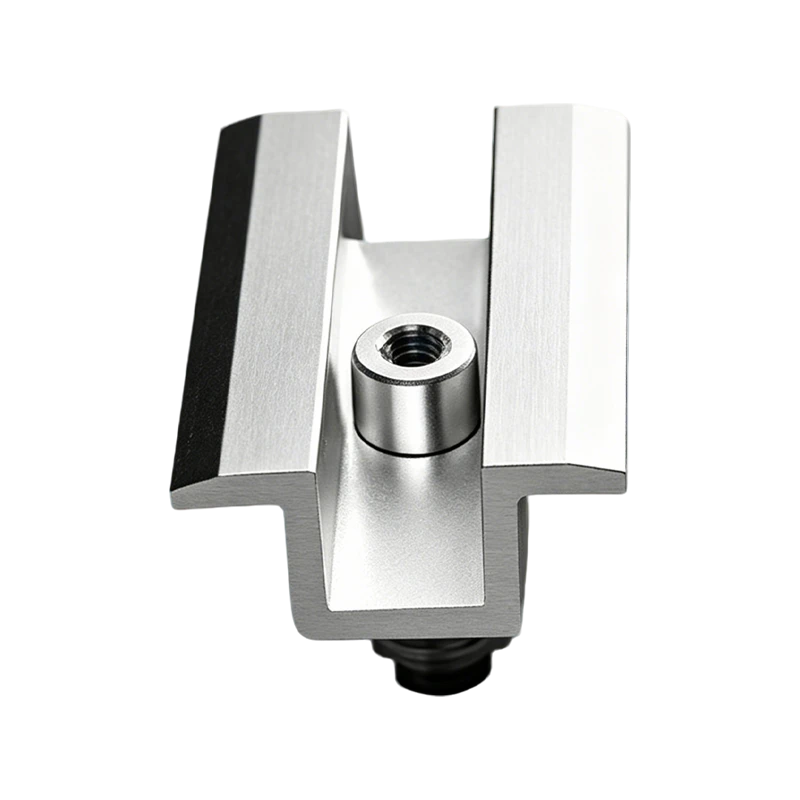

Mid Clamps

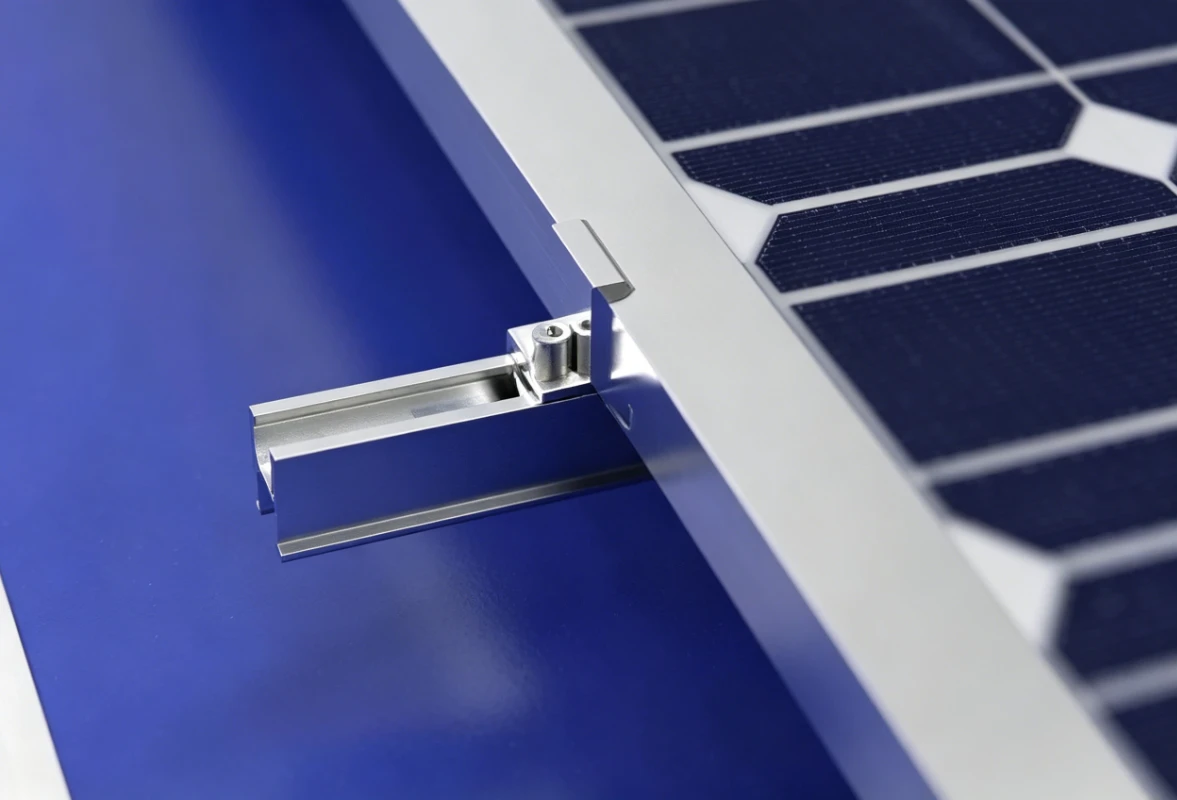

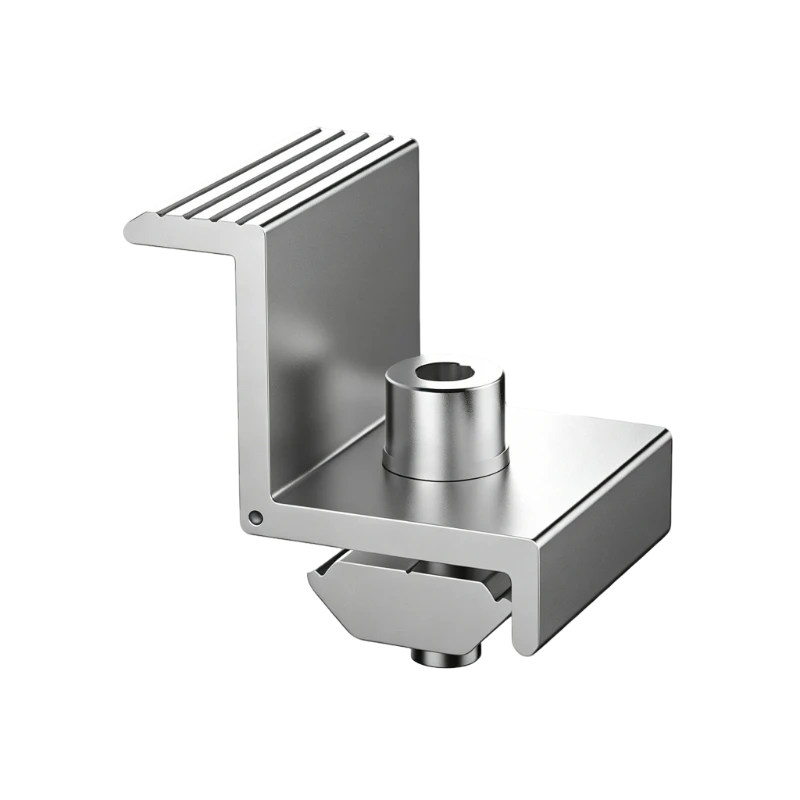

End Clamps
Why Choose Our Module Clamps
- No Drilling, No Leaks – Clamps grip the roof profile without penetration.
- High-Strength Aluminum Alloy – Lightweight yet durable.
- Universal Compatibility – Fits trapezoidal, standing seam, and corrugated profiles.
- Fast Installation – Pre-assembled components reduce on-site labor and installation time.
- Customizable – Lengths, materials, and clamping force adjustable per project requirements.
Technical Parameters
| Material | Aluminum Alloy |
| Surface Treatment | Anodized (8–15μm) / Hot-Dip Galvanized |
| Clamp Types | Mid Clamp / End Clamp |
| Mid Clamp Sizes | 20mm / 26mm / 28mm (panel spacing) |
| End Clamp Sizes | 35mm / 40mm / 45mm / 50mm (frame height) |
| Clamp Length | 40mm / 50mm / 60mm or custom |
| Wind Load Capacity | Up to 60m/s |
| Warranty | 10–25 years |
Production Process – Mid Clamps & End Clamps

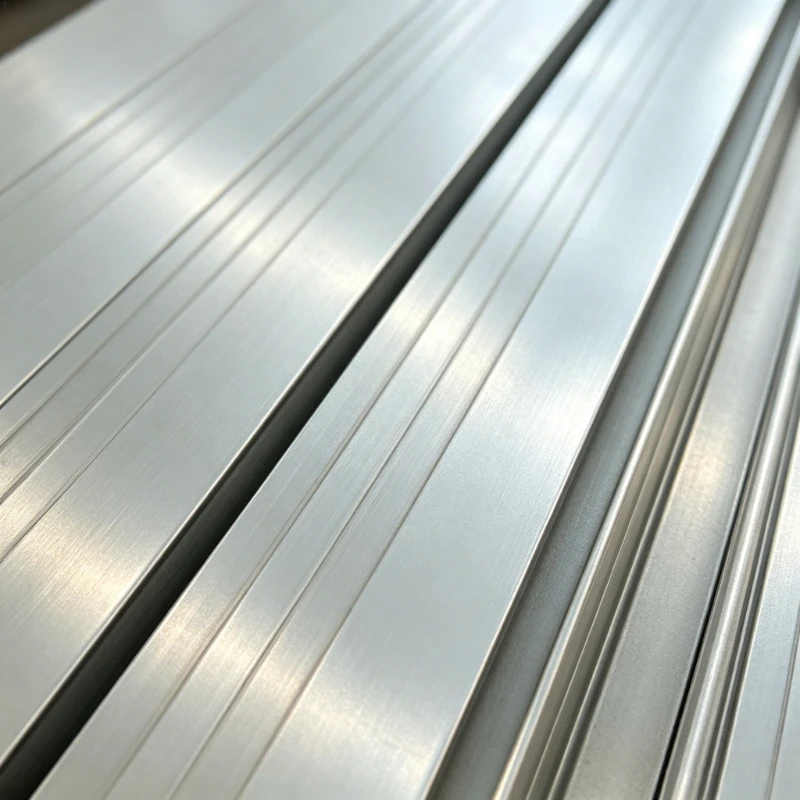

Step 1: Raw Material Preparation
Steel or aluminum coils are selected, inspected, and prepared for production.

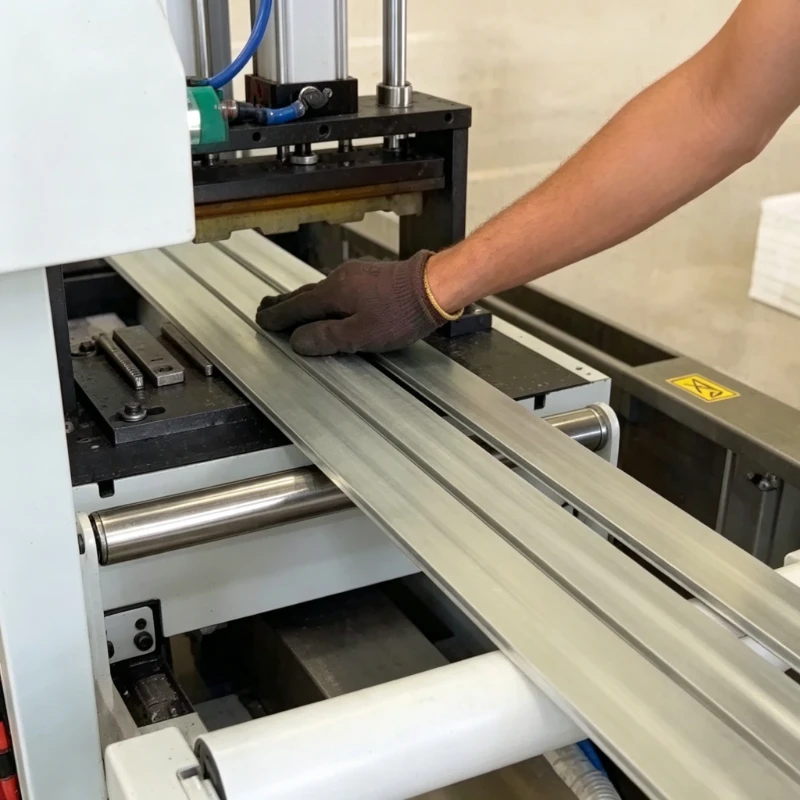

Step 2: Feeding
Material is fed into the stamping or roll forming line automatically.

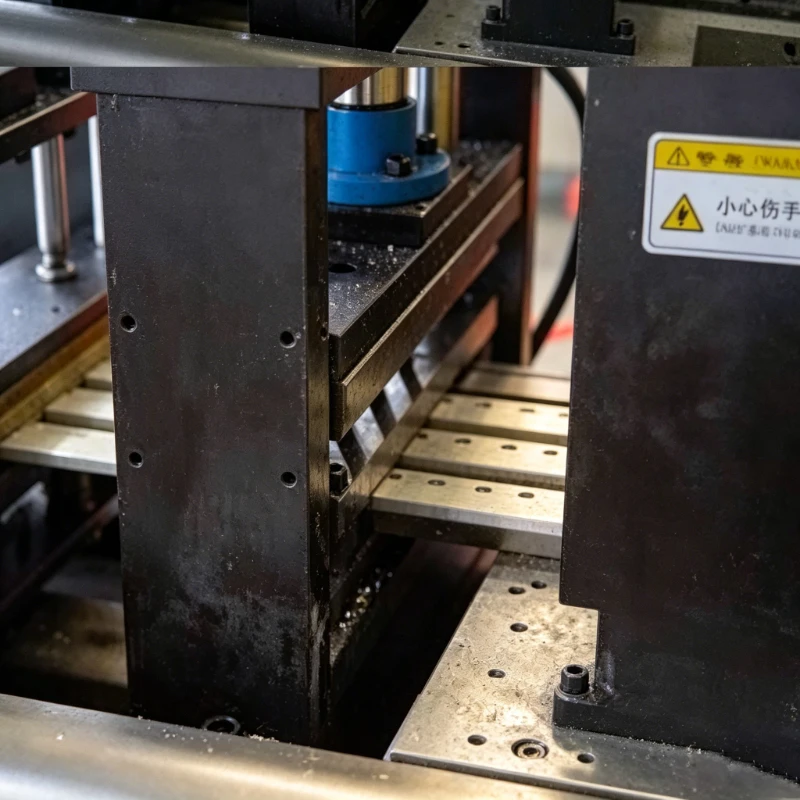

Step 3：Punching
Mounting holes and positioning holes are precisely punched per specifications.

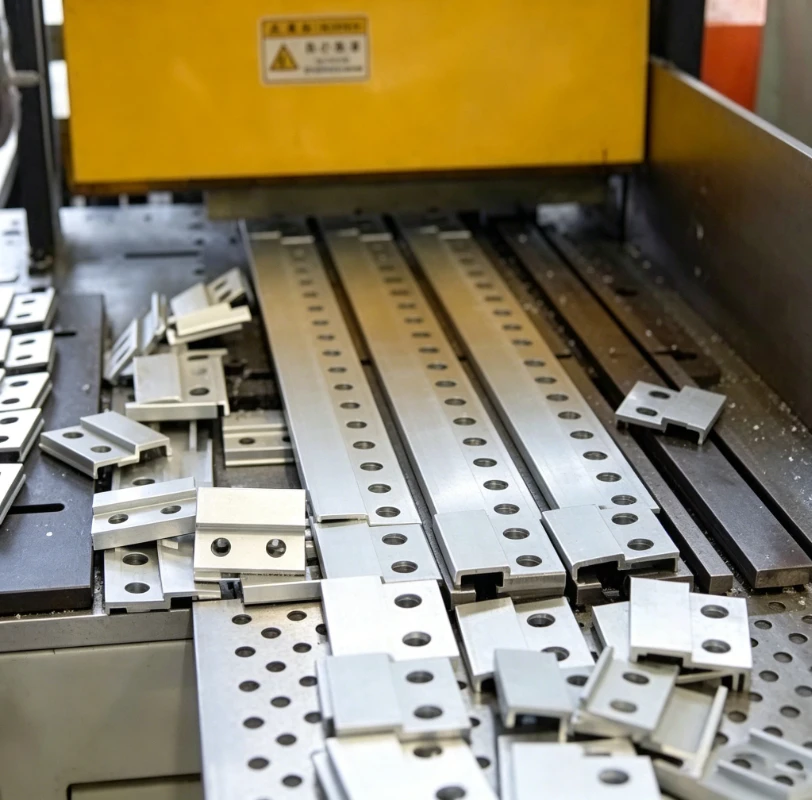

Step 4：Cutting
Profiles are cut to required lengths for mid clamps and end clamps.
Custom Solar Panel Mounts Options
You can flexibly customize the material, coating, length, height, width, thickness, style, and color of the rooftop photovoltaic bracket.
Material
Common material options include aluminium alloy, stainless steel, and galvanized steel, all sourced from reputable domestic suppliers. The material type can be customized to match specific environmental conditions and structural load requirements.
Coating
A broad selection of anti-corrosion coatings is available, including hot-dip galvanizing, zinc-aluminium-magnesium, spray painting, and baking paint, to suit different environmental conditions.
Style
The bracket structure is sturdy and durable, with customizable design options to fit project needs, and offers a service life of up to 25 years.
Thickness
Thickness can be customized to accommodate various load-bearing requirements across different installation sites.
Height
Height can be flexibly adjusted, with our technical team providing professional guidance to meet specific site clearance or elevation requirements.
Color
Multiple spray-paint colors are offered, allowing the system to blend seamlessly with surrounding environments or architectural aesthetics.
Can’t Find the Product You’re Looking For?
Contact our team to explore additional products, custom options, and tailored solutions.
