Tile Roof

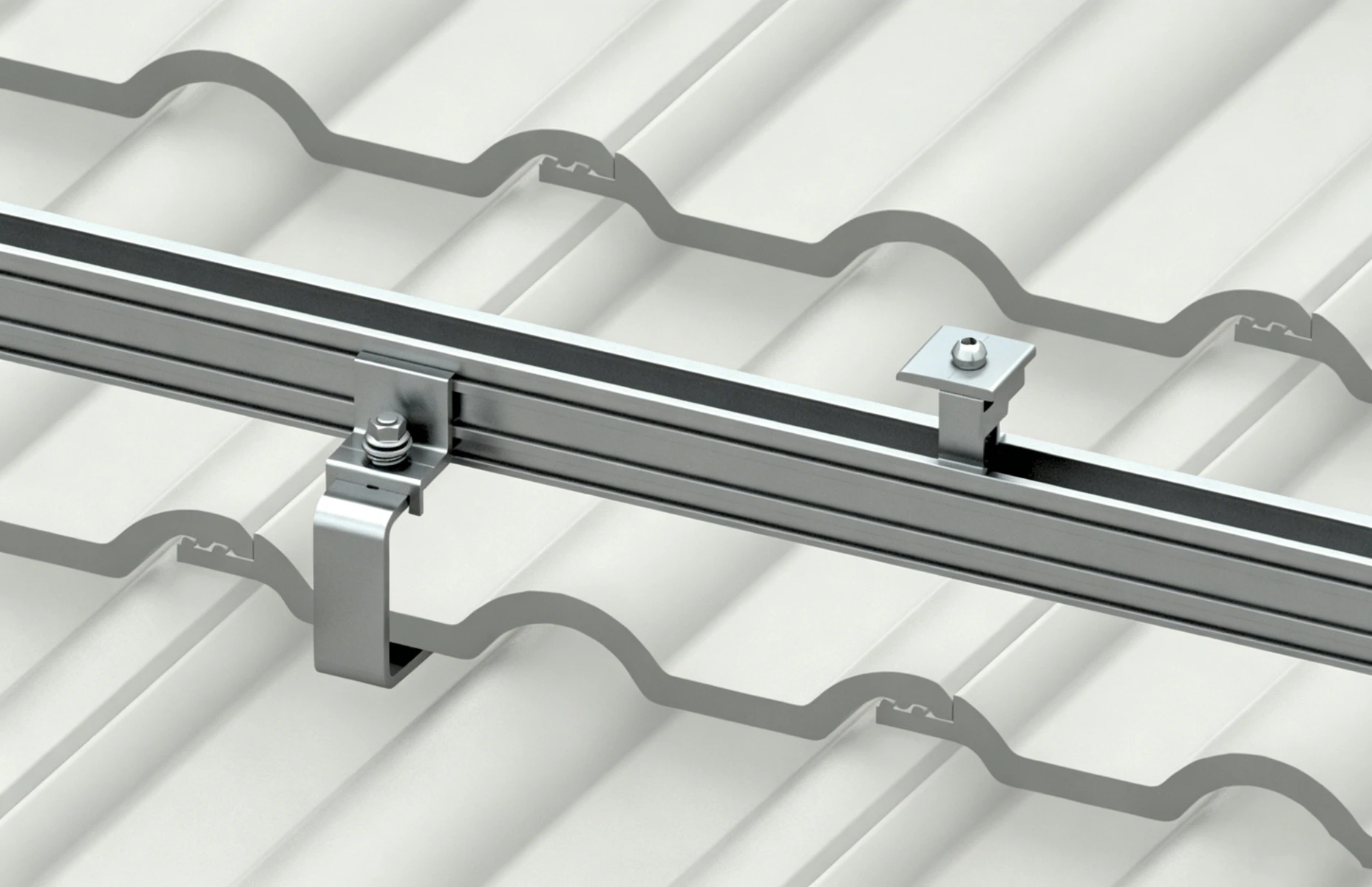

For concrete, clay, or asphalt shingle roofs, we usehooks anchored to the structural layer beneath the tiles – with tiles restored in place. Modules follow the roof slope, blending seamlessly with the building’s original aesthetics.
- Benefits: No tile damage, visually harmonious, reliable waterproofing, compatible with various tile types.
- Best for: Villas, high-end residences, resorts, heritage-style buildings.
Stainless Steel Tile Hooks for Solar PV Racking
Fit Roman, plain, and slate tiles. With aluminium rails, they enable fast, adjustable installation without damaging waterproofing. Secure, stable, they cut construction time and extend system life for residential/commercial projects.

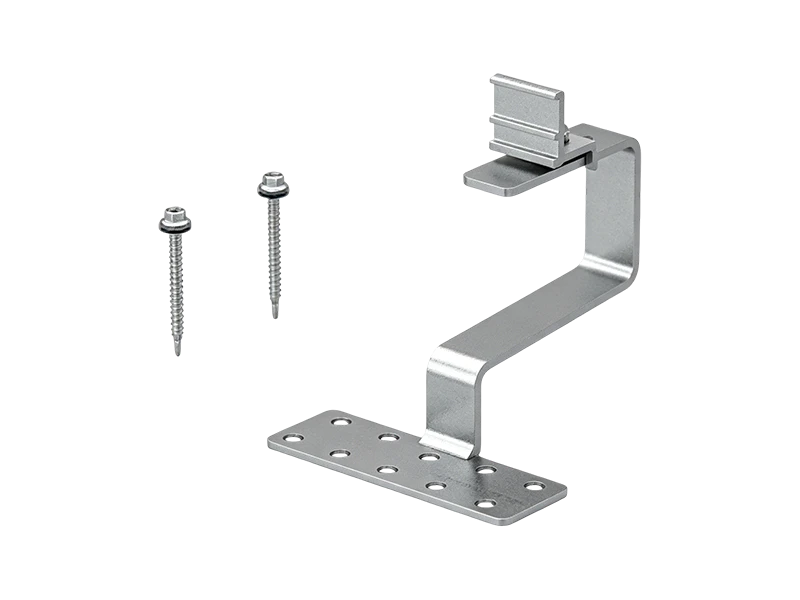

Roman Tile

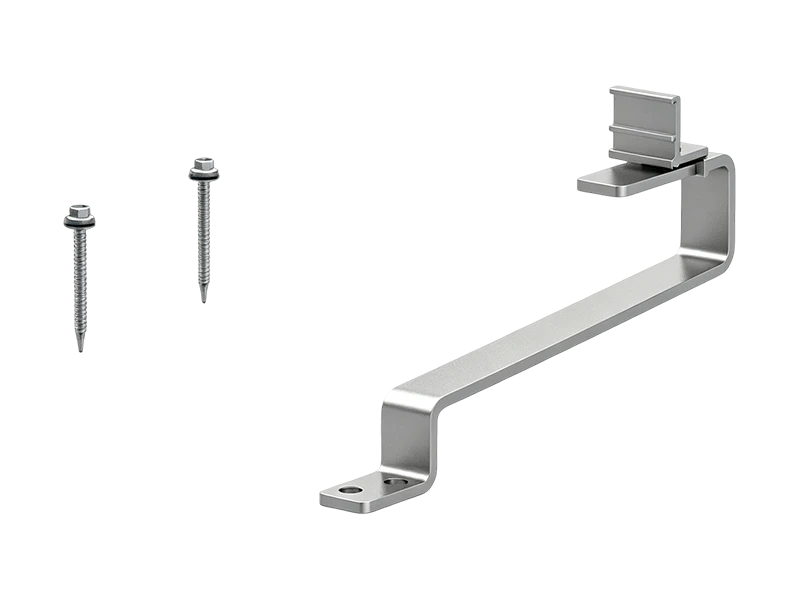

Plain Tile

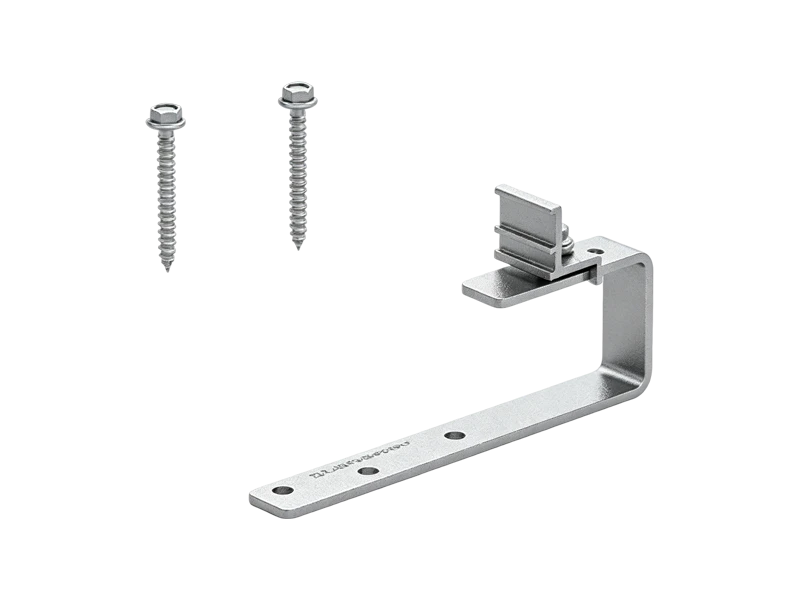

Slate Tile
Technical Parameters
| Material | High-Strength Aluminum Alloy & Stainless Steel |
| Surface Treatment | Anodizing & Stainless Steel Passivation |
| Size | Standard or Custom Sizes Available |
| Max. Wind Load | ≤ 60 m/s |
| Max. Snow Load | ≤ 1.5 kN/m² |
| Tilt Angle | Parallel to Roof (10° – 60°) |
| Max. Building Height | < 20 m |
| Color | Natural (Silver) or Custom Colors |
| Customization | Full OEM/ODM Services Accepted |
System Components Overview
A solar mounting system is not only defined by steel profiles, but by how each component works together to ensure structural stability, load transfer, and long-term outdoor performance.
