What Are Solar Roof Hooks?
Solar roof hooks are metal brackets that connect solar mounting rails to the roof structure. They are typically fixed to roof rafters or structural beams and extend above the roof surface to support aluminum rails[reference:4]. Solar panels are then installed on the rails using mid clamps and end clamps.

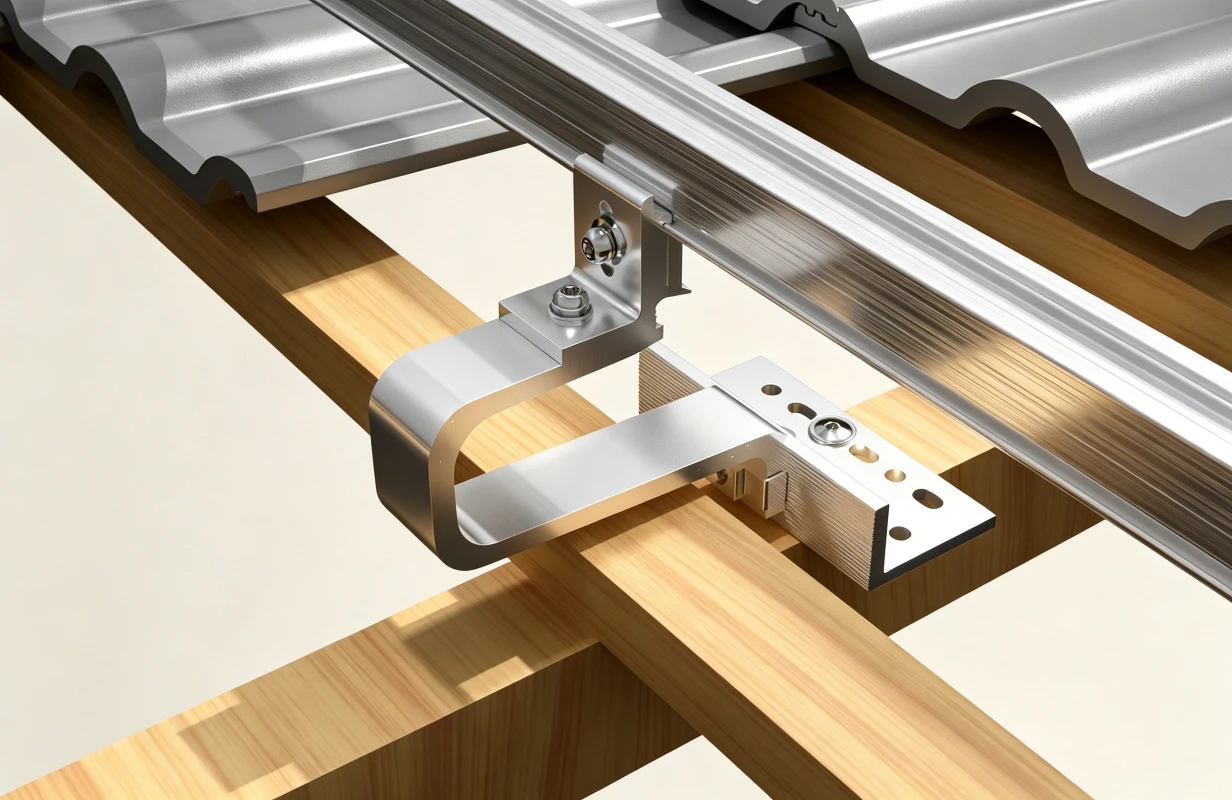

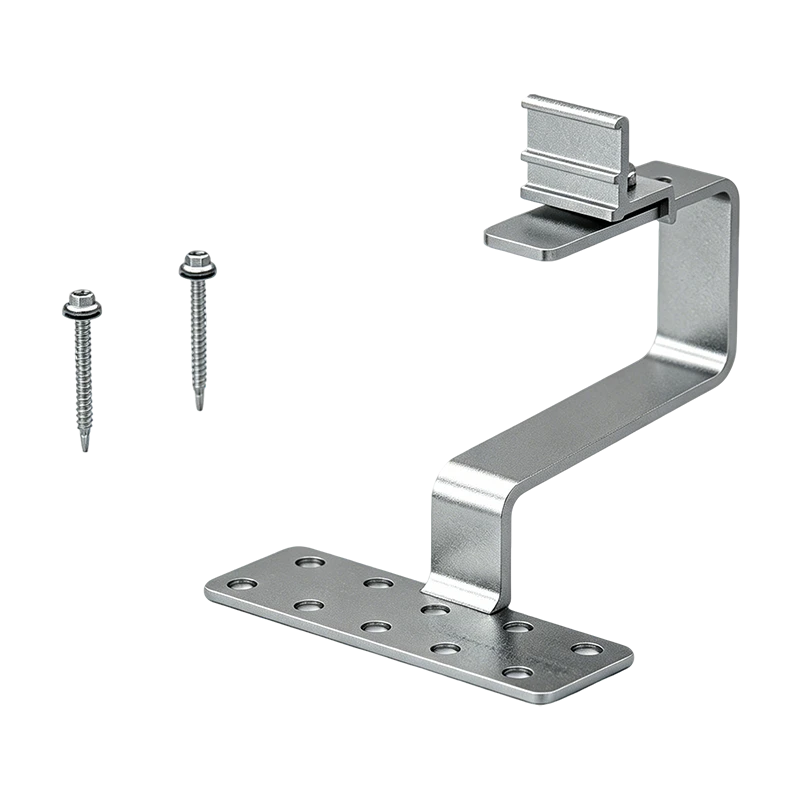

Roman Tile

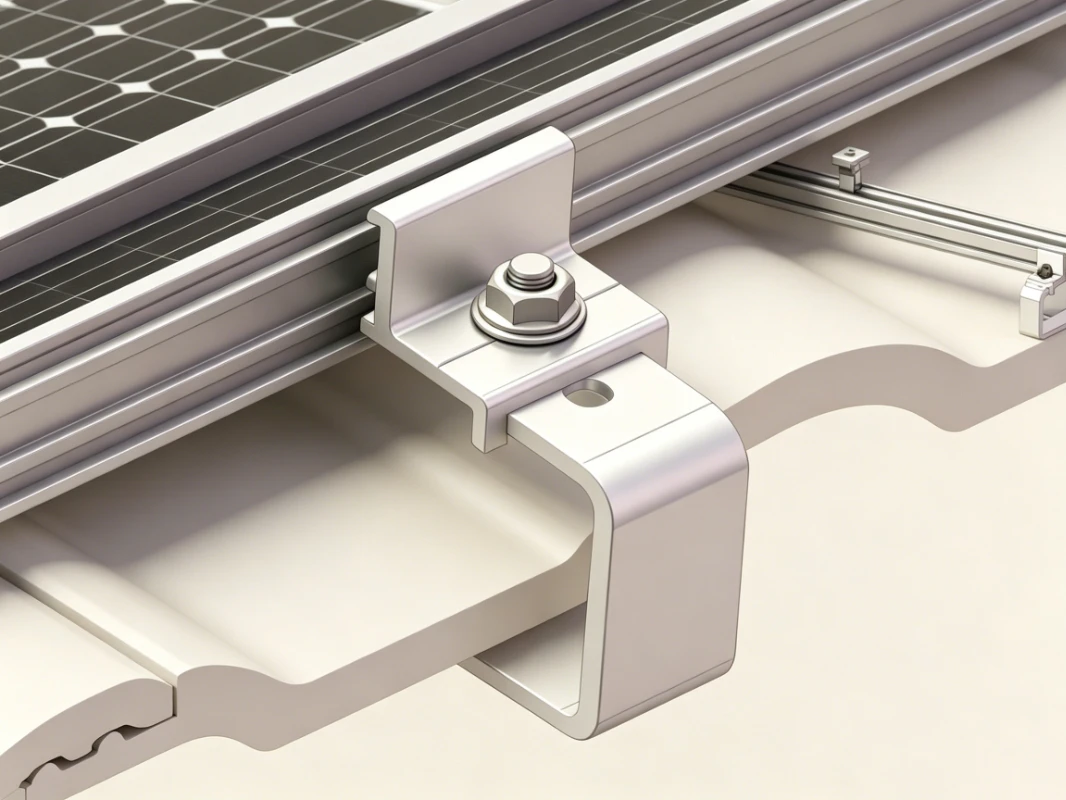

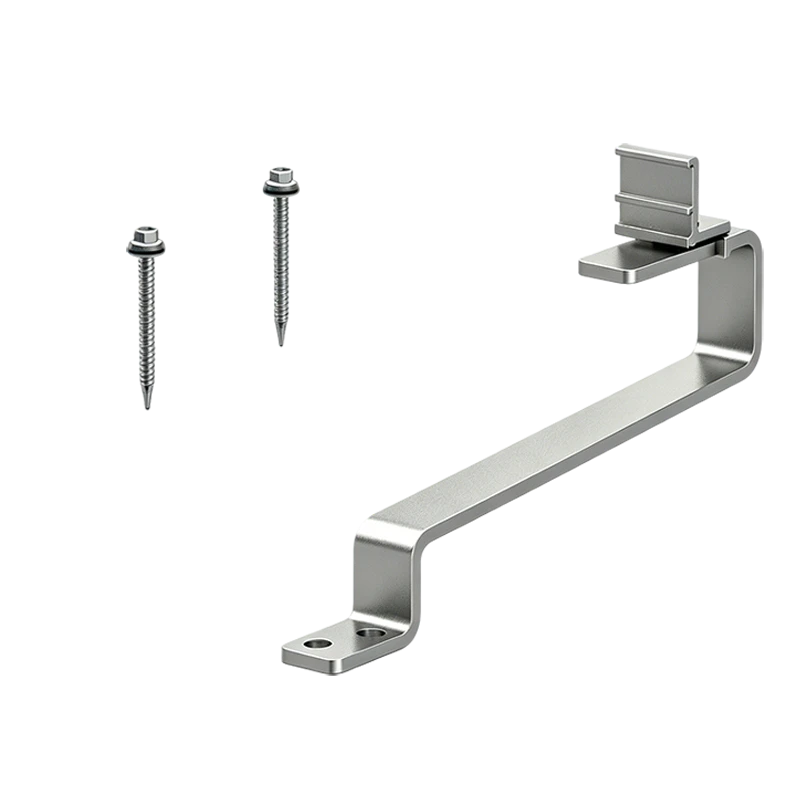

Plain Tile

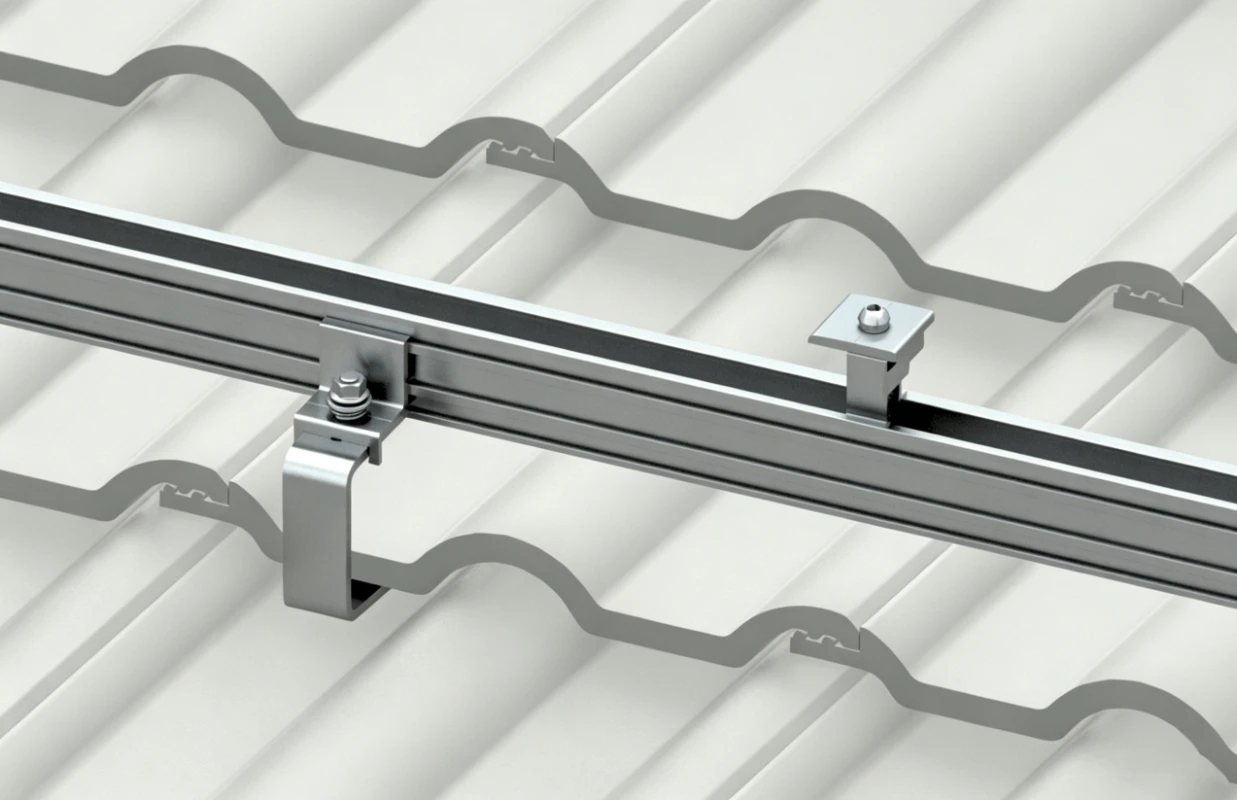

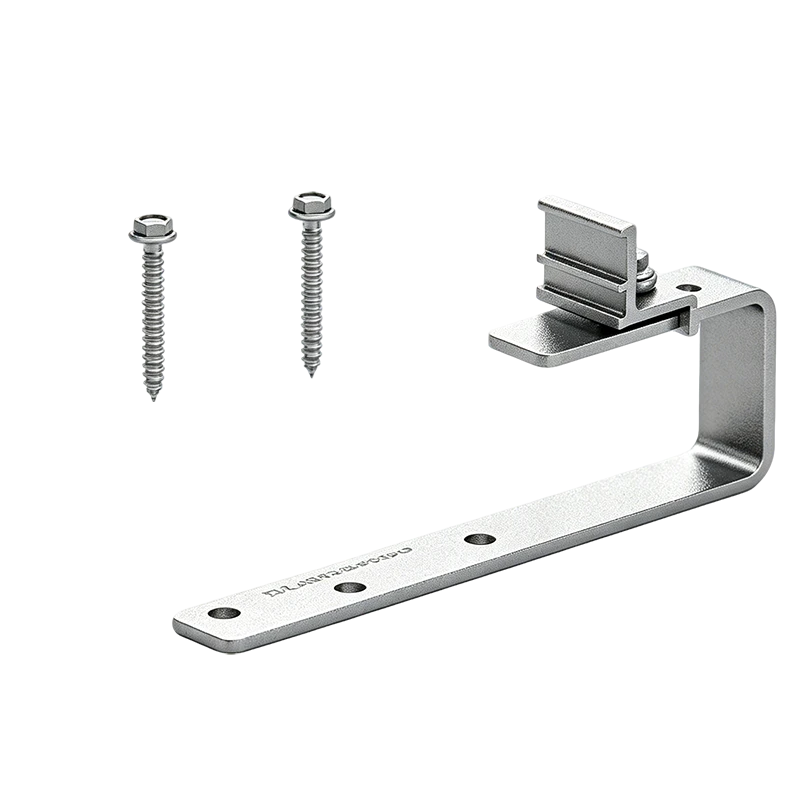

Slate Tile
Why Choose Our Roof Hooks
- Superior Corrosion Resistance –Withstands salt spray, moisture, and UV exposure. 25-year service life.
- No-Leak Design – Installed beneath tiles or clamped onto metal seams. No drilling through the waterproof layer.
- High Wind & Snow Resistance – Engineered for wind loads up to 60m/s and snow loads up to 1.4 kN/m².
- Universal Compatibility – Fits most common roof types: clay tiles, concrete tiles, Spanish tiles, slate, shingles, and metal sheets.
- Fast & Easy Installation – Pre-assembled components reduce on-site labor time. Adjustable designs accommodate roof irregularities.
- OEM/ODM Ready – Custom branding, packaging, and spec modifications available.
Technical Parameters
| Material | SUS304 Stainless Steel / Aluminum Alloy |
| Surface Treatment | Sandblasted / Anodized |
| Applicable Roof Types | Clay tile, concrete tile, Spanish tile, slate, metal sheet, shingle |
| Max Wind Load | Up to 60m/s |
| Max Snow Load | Up to 1.4 kN/m² |
| Roof Pitch Compatibility | 5° to 45° |
| Adjustability | Height-adjustable up to 35mm to 60m/s |
| Warranty | 10–25 years |
Installation Guide – Simple & Secure

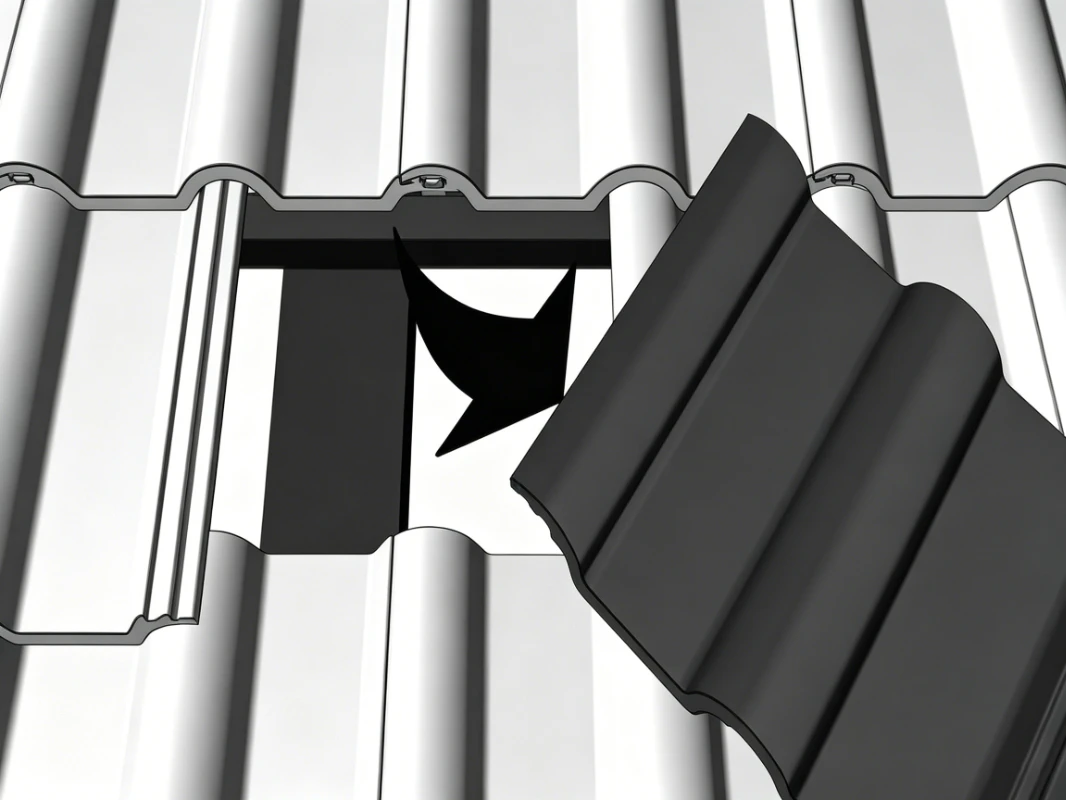

Step 1 : Temporarily remove the tile at the installation location

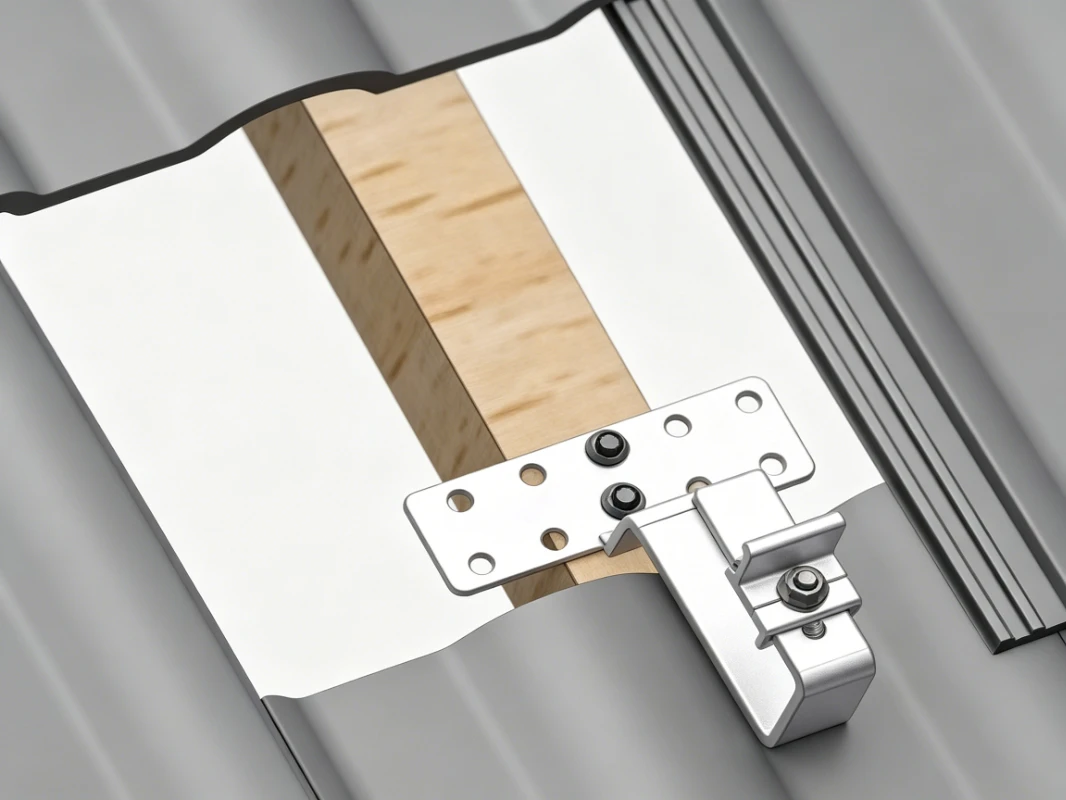

Step 2 : Fix the hook to the wooden rafter beneath the roof

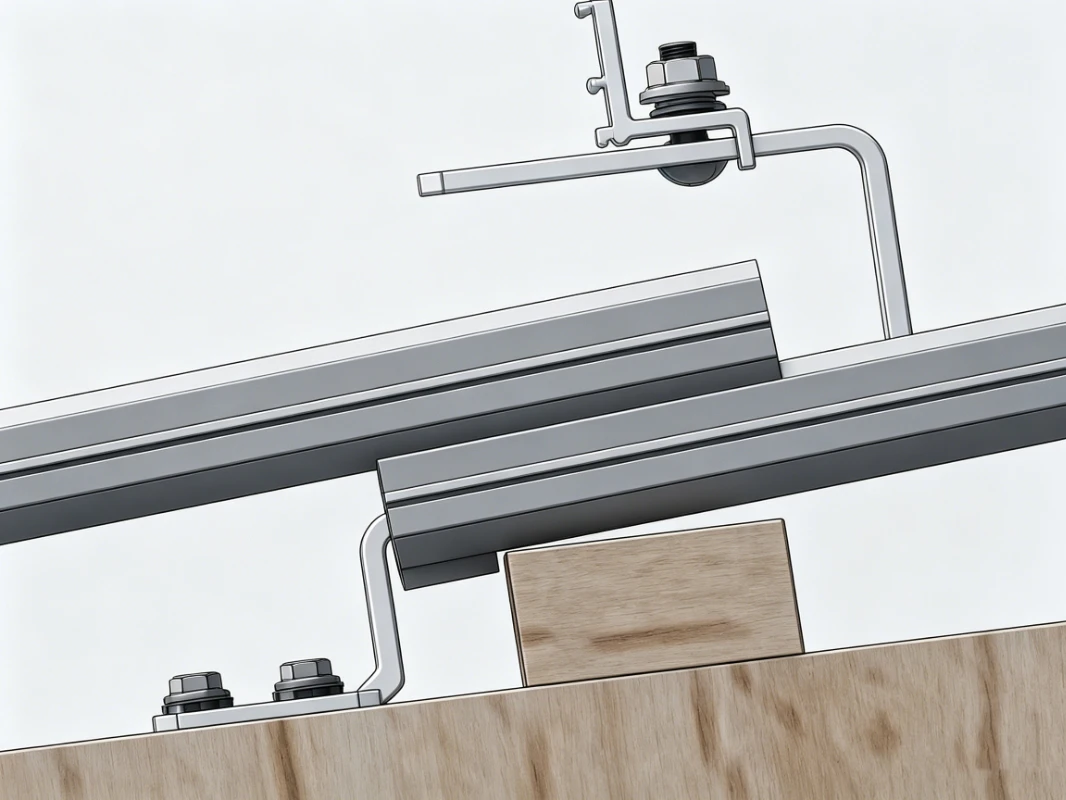

Step 3 : Place the tile back while the hook passes through the tile gap
Step 4 : Attach the aluminum rail to the hook using T-bolts
Custom Solar Panel Mounts Options
You can flexibly customize the material, coating, length, height, width, thickness, style, and color of the rooftop photovoltaic bracket.
Material
Common material options include aluminium alloy, stainless steel, and galvanized steel, all sourced from reputable domestic suppliers. The material type can be customized to match specific environmental conditions and structural load requirements.
Coating
A broad selection of anti-corrosion coatings is available, including hot-dip galvanizing, zinc-aluminium-magnesium, spray painting, and baking paint, to suit different environmental conditions.
Style
The bracket structure is sturdy and durable, with customizable design options to fit project needs, and offers a service life of up to 25 years.
Thickness
Thickness can be customized to accommodate various load-bearing requirements across different installation sites.
Height
Height can be flexibly adjusted, with our technical team providing professional guidance to meet specific site clearance or elevation requirements.
Color
Multiple spray-paint colors are offered, allowing the system to blend seamlessly with surrounding environments or architectural aesthetics.
Can’t Find the Product You’re Looking For?
Contact our team to explore additional products, custom options, and tailored solutions.
