Flat Roof

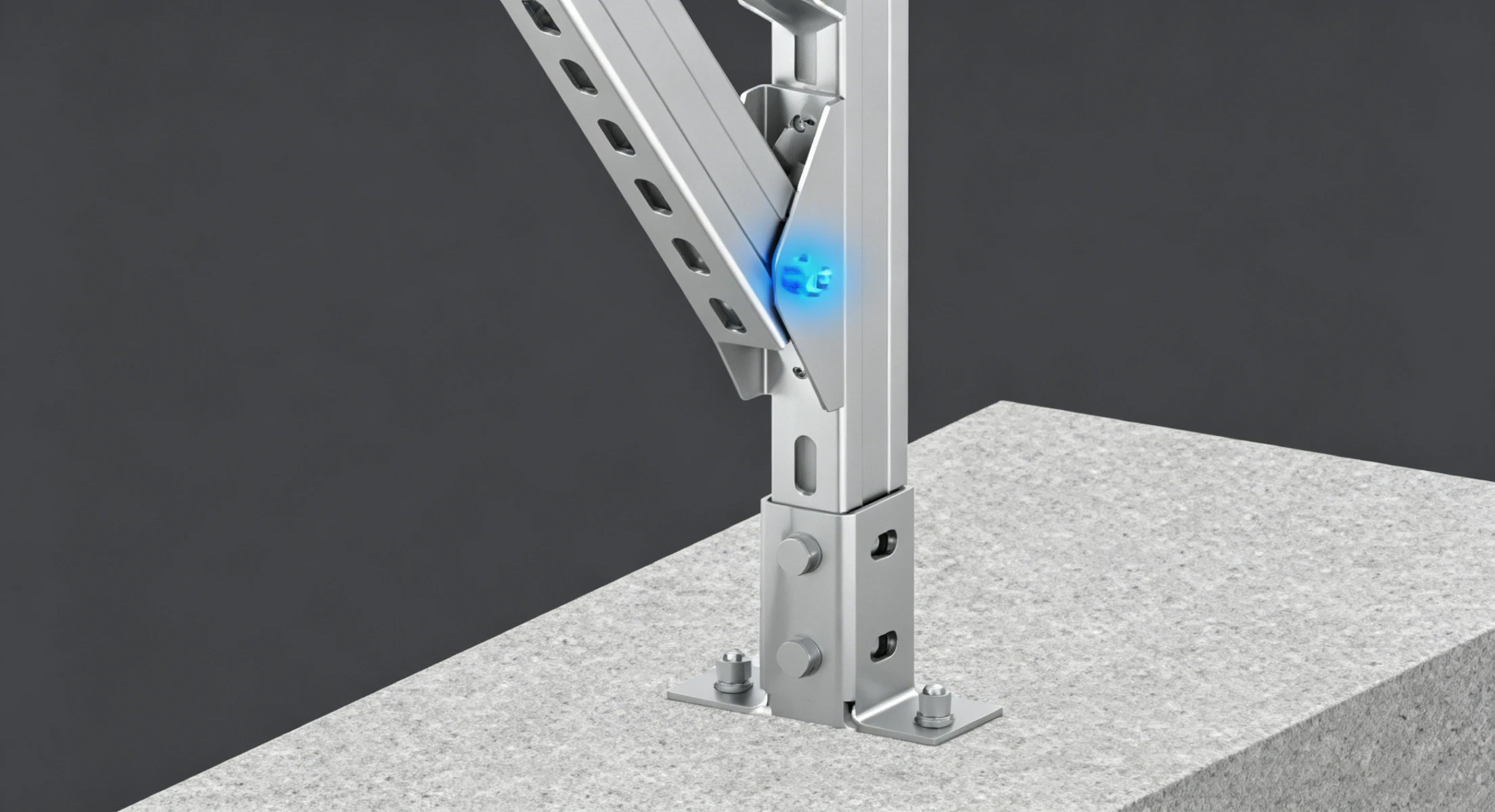

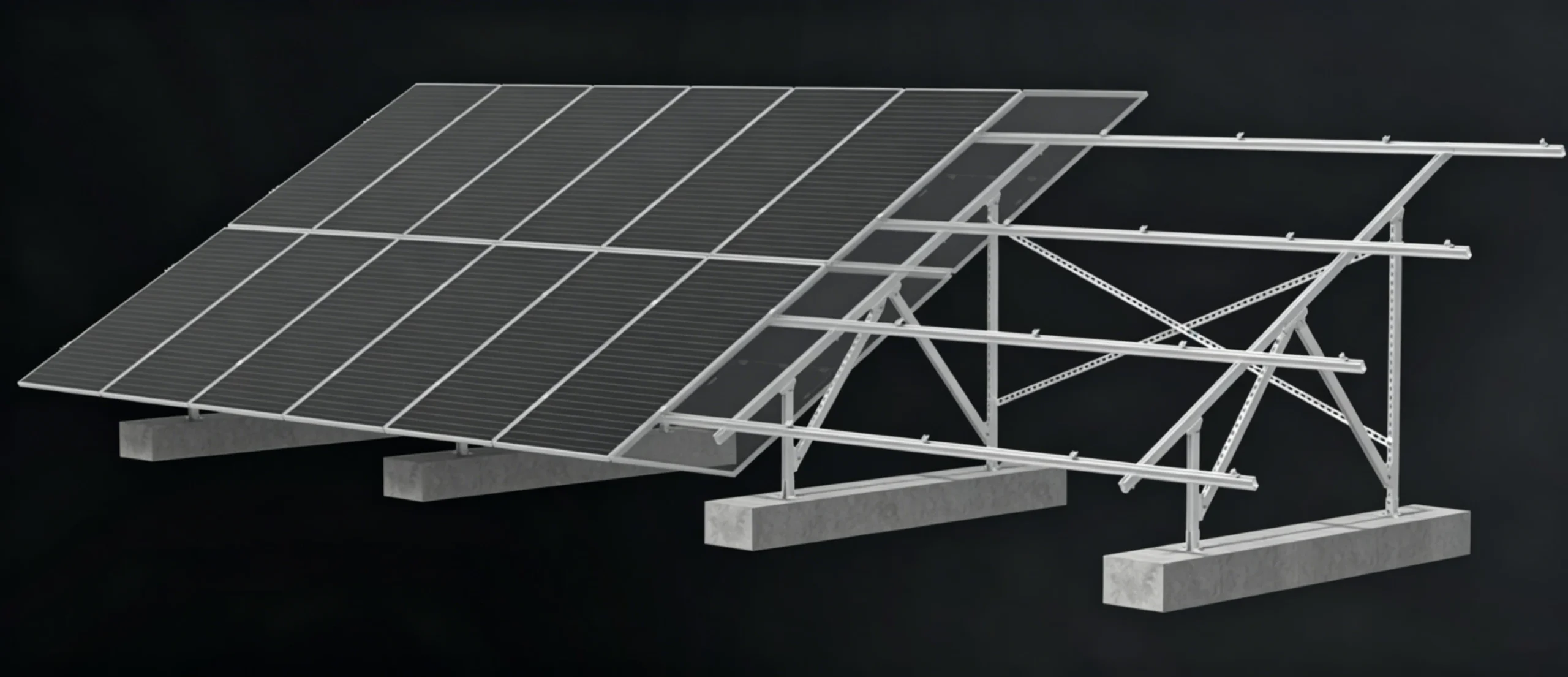

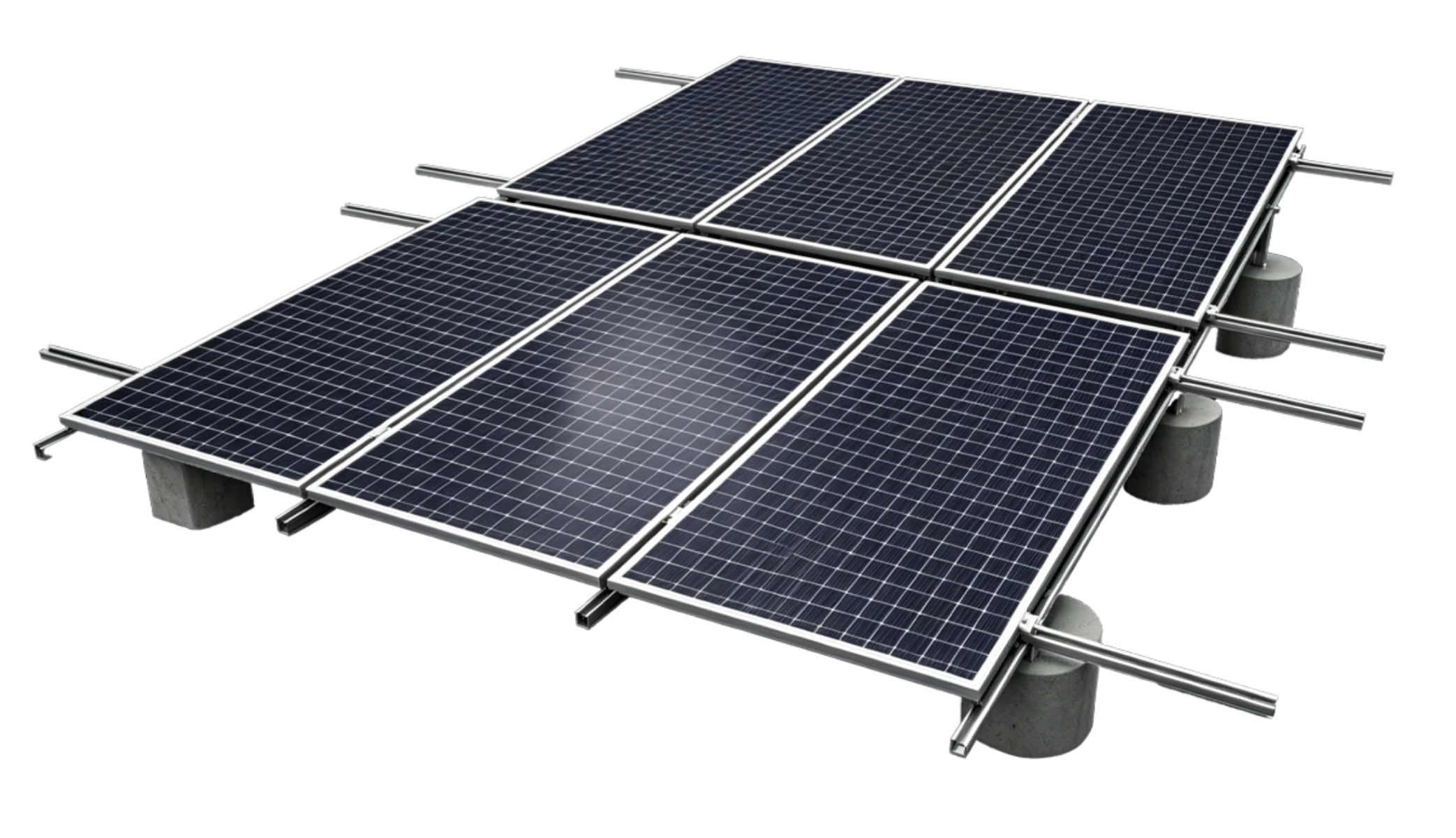

Flat roofs have no inherent tilt. We use concrete block ballasts or precast foundations without penetrating the waterproofing layer. The mounting angle can be freely adjusted to local latitude for optimal annual yield. Maintenance and cleaning are also hassle-free.
- Benefits: No roof penetration, free tilt adjustment, high load capacity, easy maintenance.
- Best for: Industrial parks, commercial office buildings, large public facilities, logistics warehouses.
One-Stop Efficient Solar Mounting Installation Solution

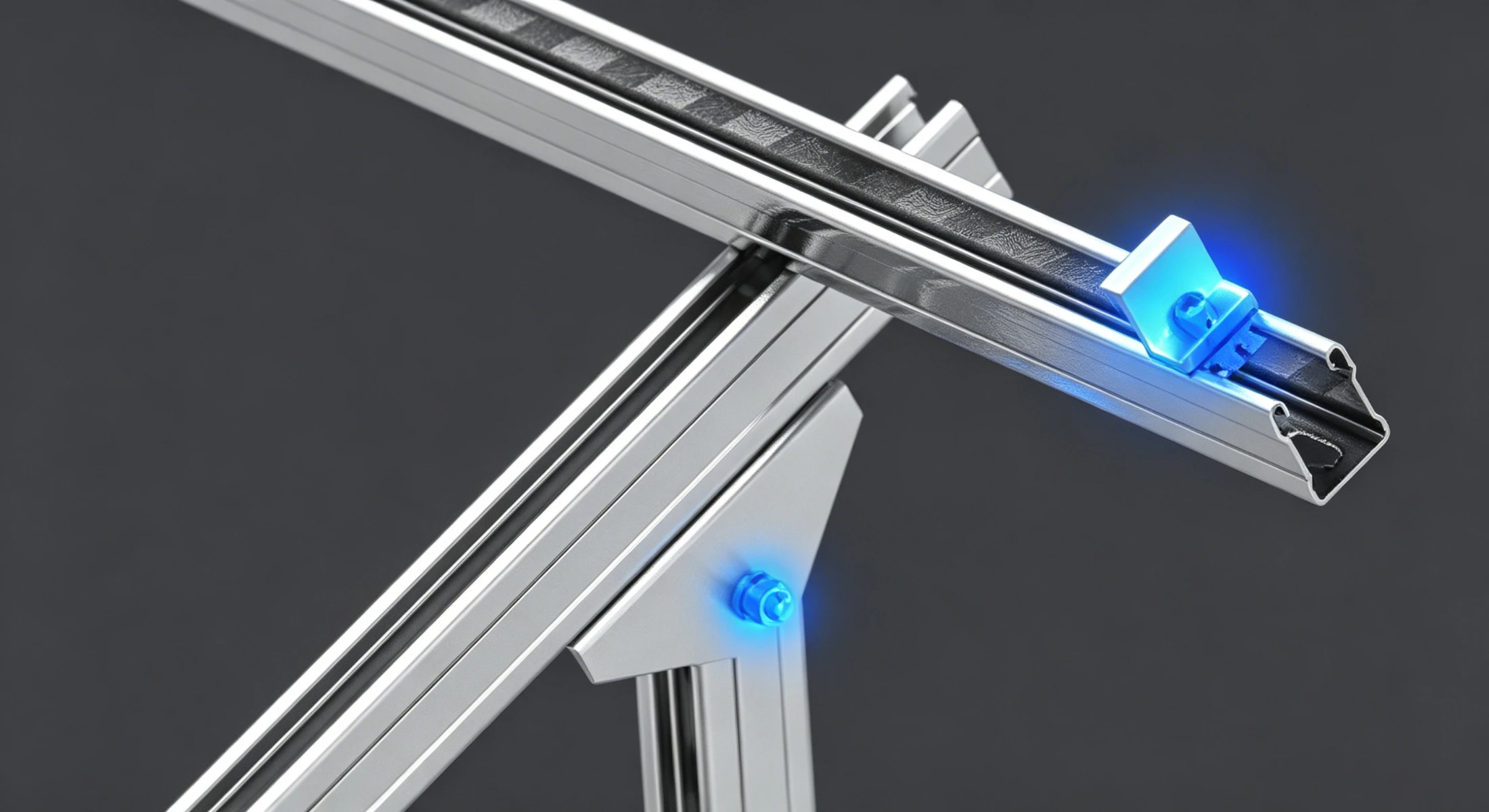

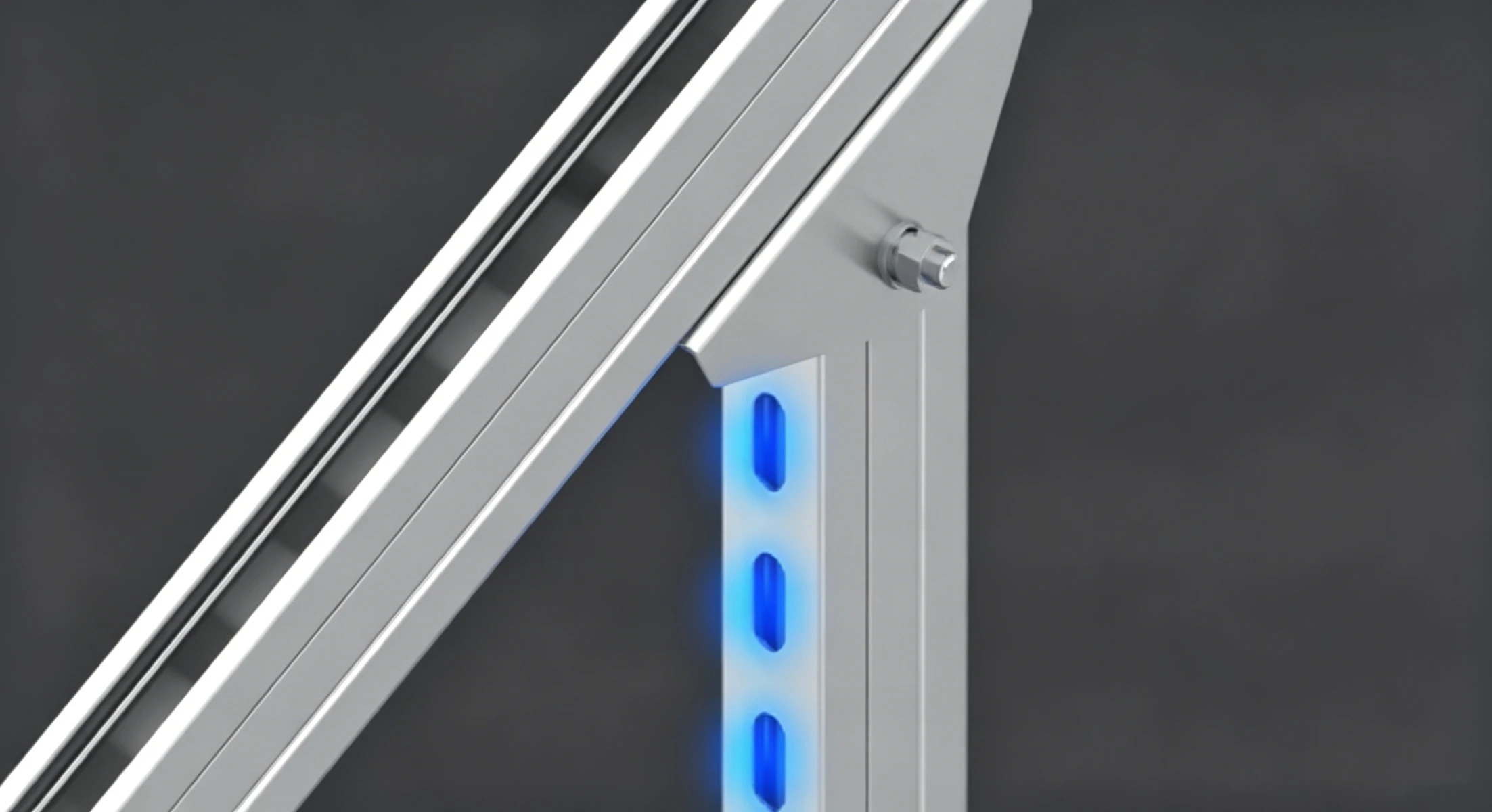

Made of Zinc-Aluminium-Magnesium coated steel, the system features drill-free, standardised profiles for high compatibility and quick installation. Compared to conventional mounts, it eliminates on-site drilling, cuts parts by 30%, and boosts installation efficiency by 30%. Compatible with various PV modules and rooftops, it notably reduces installation time and overall costs.
Technical Parameters
| Material | Carbon Steel/Aluminum Alloy or Custom |
| Surface Treatment | Hot-dip galvanizing / Zincaluminummagnesium (ZAM) / Weathering steel (Corten)/baking painted, anodizing |
| Size | Standard or Customized |
| Grade | S235、S355 |
| Design Wind Load | ≤60 m/s |
| Design Snow Load | ≤1.5 kN/m² |
| Tilt angle | 0-45° |
| Building height | <20m |
| Color | Silver or customized |
| OEM/ODM | Accept |

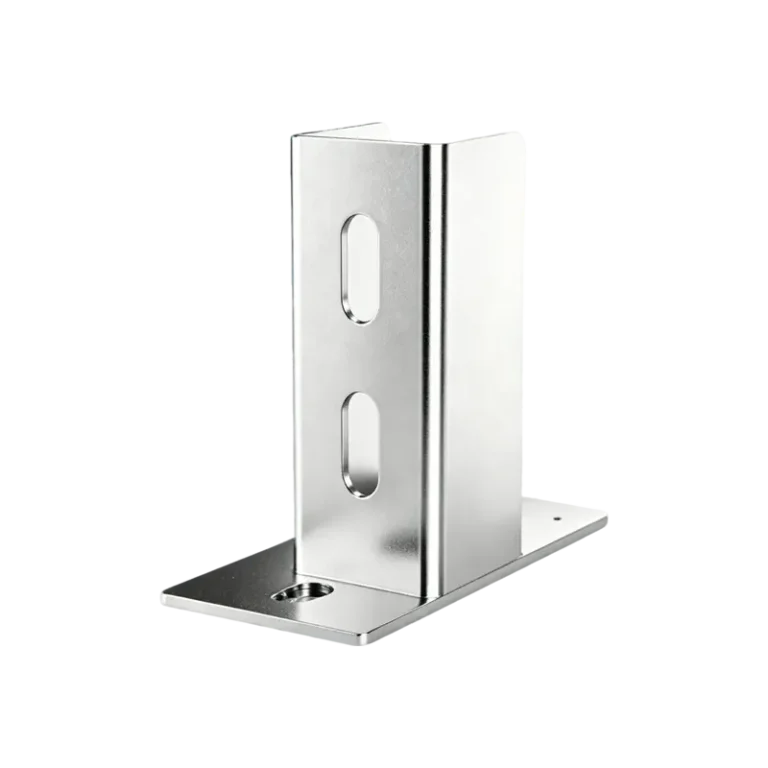

System Components Overview
A solar mounting system is not only defined by steel profiles, but by how each component works together to ensure structural stability, load transfer, and long-term outdoor performance.
