What Are PV Mounting Gutters?
PV mounting gutters are specialized drainage components integrated into solar mounting systems. Their primary function is to efficiently divert rainwater, preventing water accumulation that can corrode photovoltaic modules and mounting structures. They are essential for applications where waterproofing is critical, such as solar carports and rooftop installations.

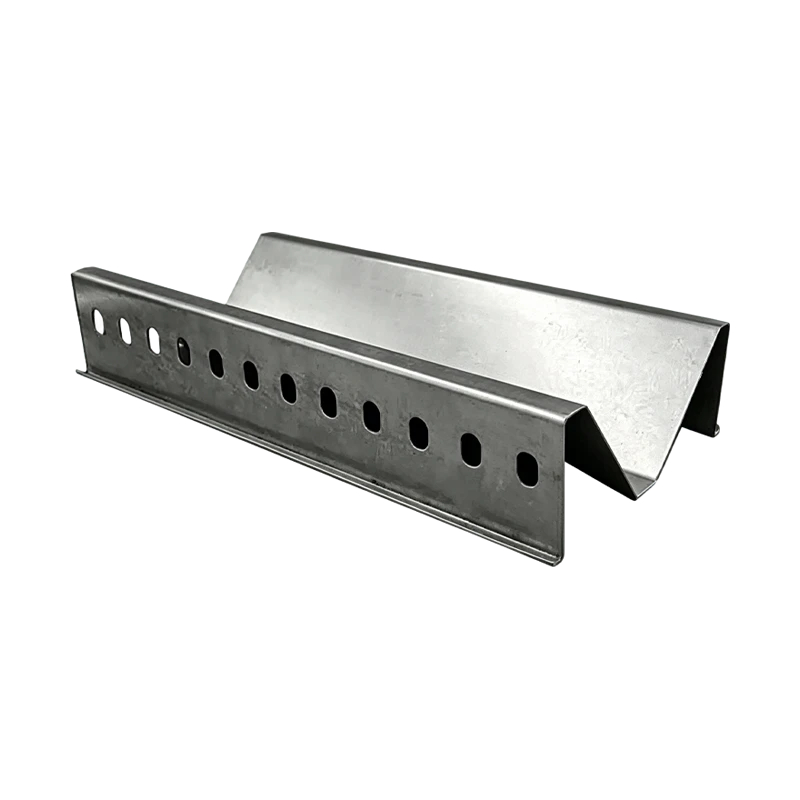

Main Gutter

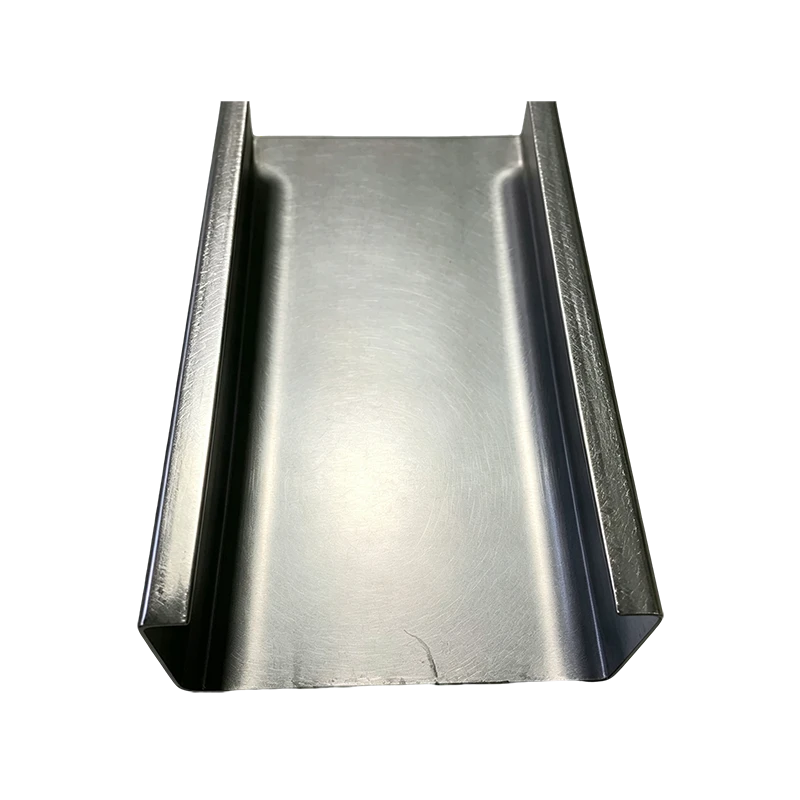

Sub-Gutter

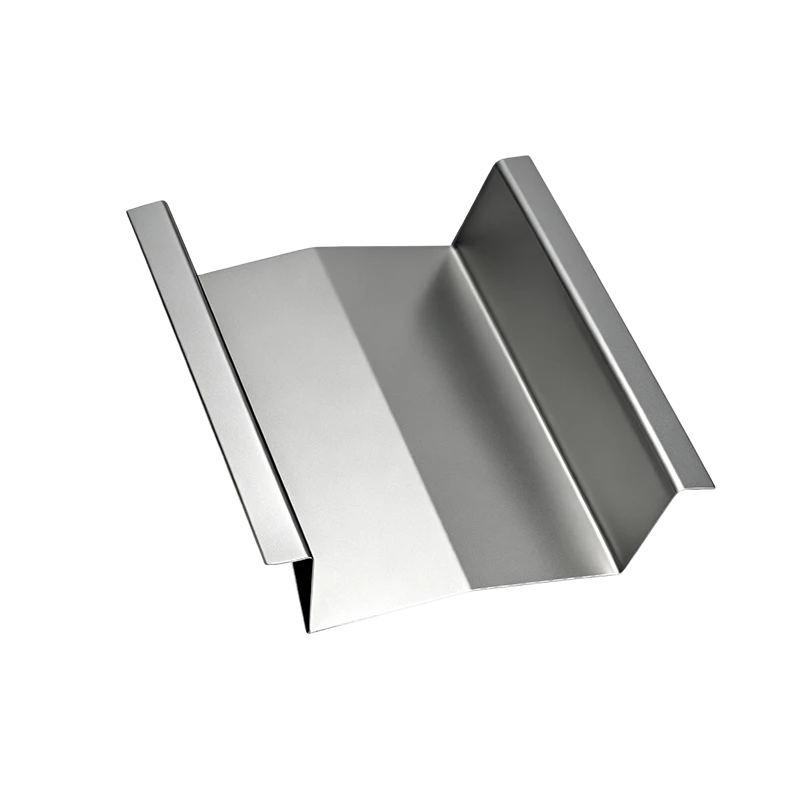

Drainage Channel
Applications
Where Waterproofing Matters

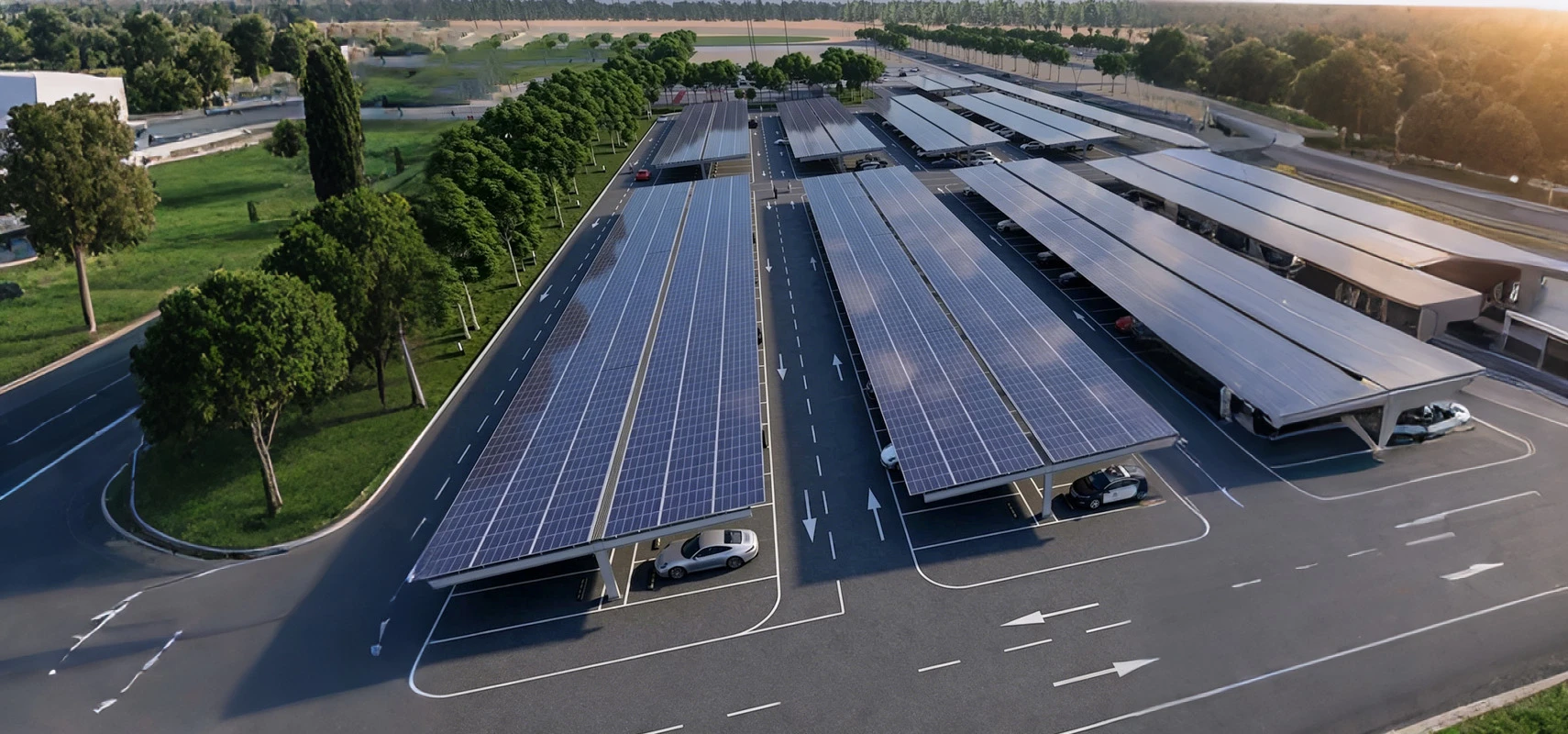

Solar Carports
Prevents water from dripping onto vehicles and protects the structure

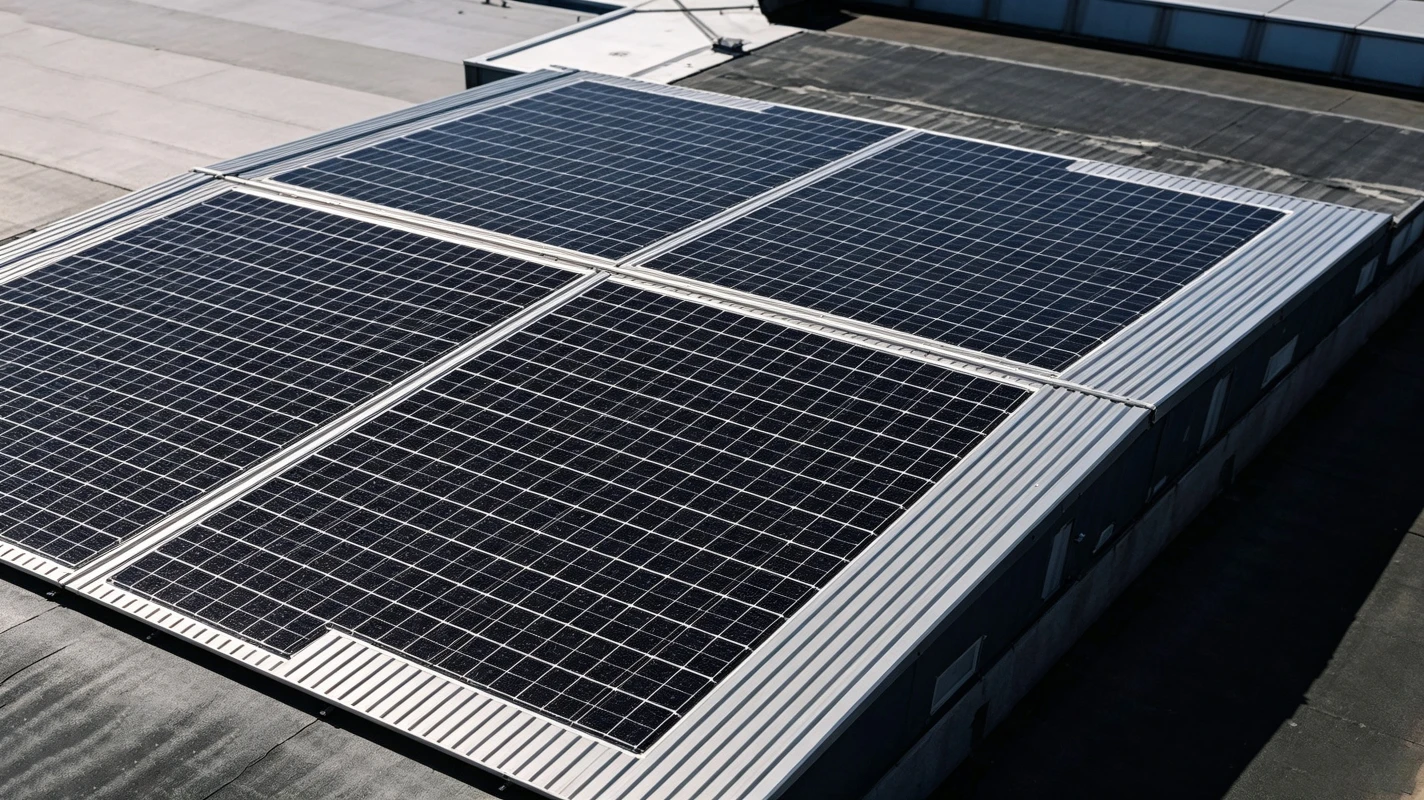

Rooftop PV Systems
Safeguards building roofs from water damage and leakage

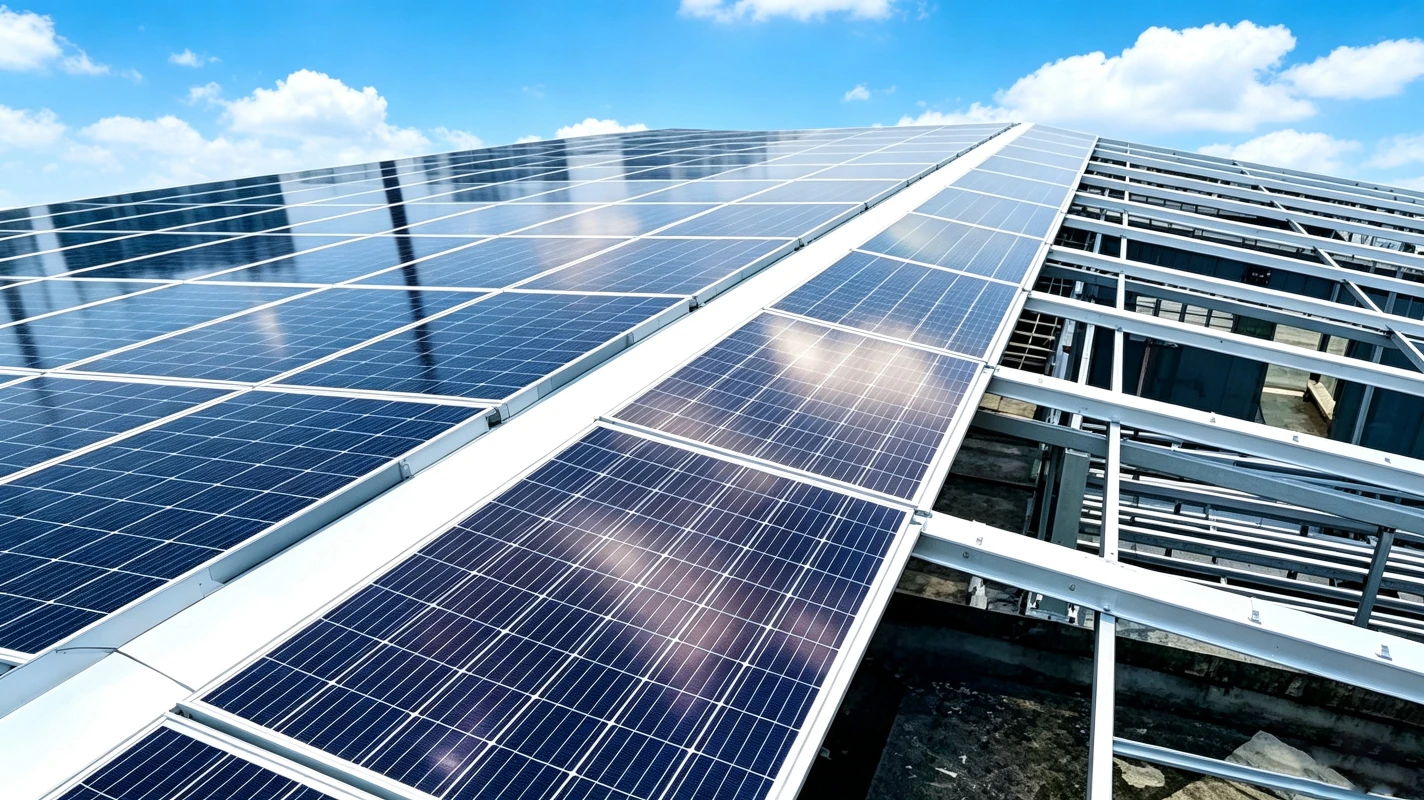

BIPV Projects
Integrated waterproofing as part of the building envelope
Why Choose Our PV Gutters
- Superior Corrosion Resistance – ZAM-coated or aluminum alloy for 25+ year lifespan in harsh environments.
- Efficient Water Diversion – Engineered to prevent water accumulation and protect modules from corrosion.
- Versatile Compatibility – Adaptable to flat roofs, sloped roofs, and various installation angles.
- Custom Solutions – OEM/ODM services for length, thickness, material, and surface treatment.
Technical Parameters
| Material | ZAM Coated Steel / Aluminum Alloy |
| Width | 130mm – 180mm (custom available) |
| Thickness | 0.5mm – 1.5mm (custom available) |
| Length | 1,200mm – 3,500mm (custom up to 6,000mm) |
| Wall Thickness | 2.0mm – 5.0mm |
| Surface Treatment | Hot-Dip Galvanized / Anodized |
| Gutter Types | Main Gutter, Sub-Gutter, Drainage Channel |
| Compatibility | C/Z purlins, rectangular tubes |
| Service Life | 25+ years |
Production Process – Screw Piles Technical Parameters

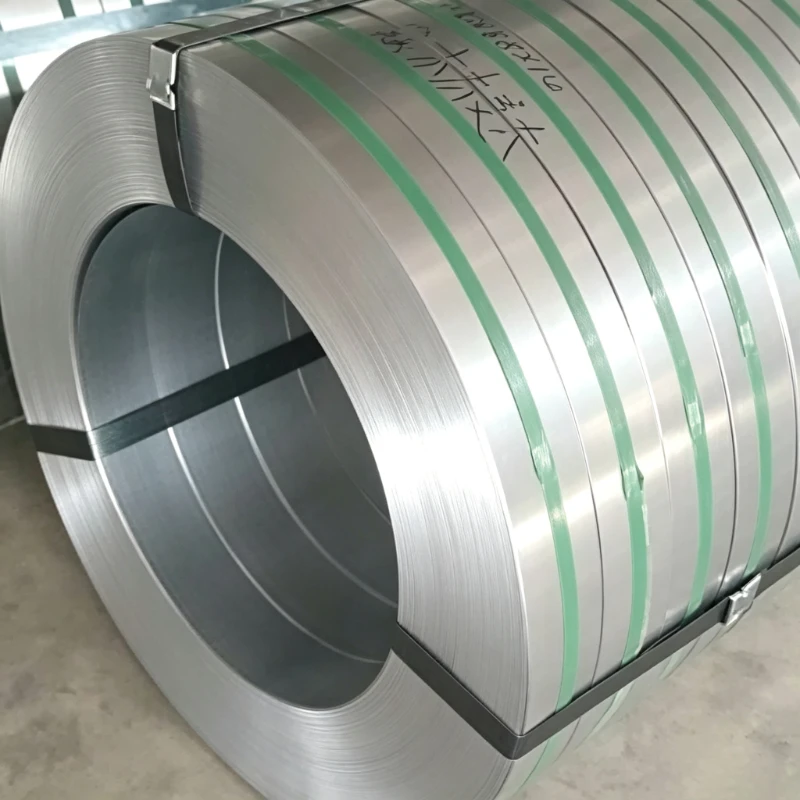

Step 1: Raw Material Preparation
Qualified ZAM (Zn-Al-Mg) coated steel coils are selected and inspected. Material grade and coating thickness are verified to ensure compliance with specifications.

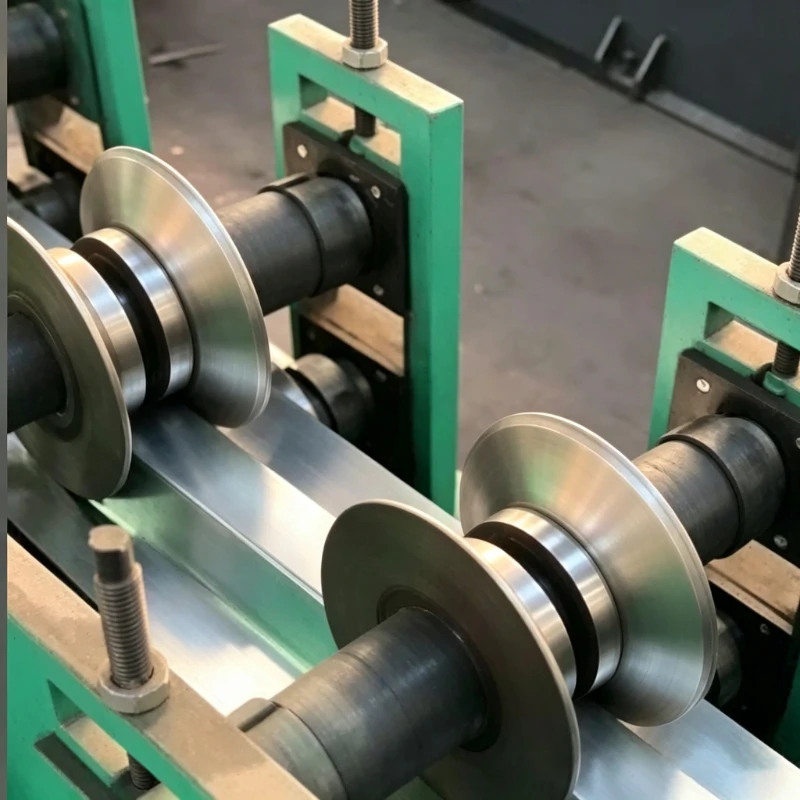

Step 2: Cold Roll Forming
The ZAM-coated steel strip is fed into a precision cold roll forming unit. Through progressive roller stations, the strip is gradually shaped into the required gutter profile (M-shaped, U-shaped, or custom).

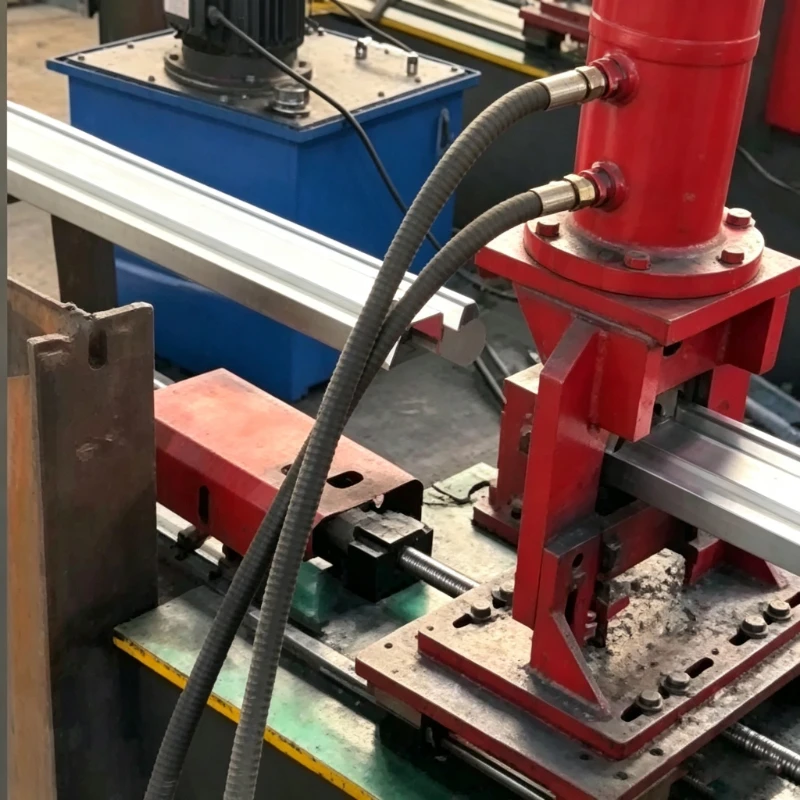

Step 3：Cutting
Profiles are cut to customer-specified lengths using automatic cutting equipment. Length tolerance is strictly controlled to ensure precise fit on-site.

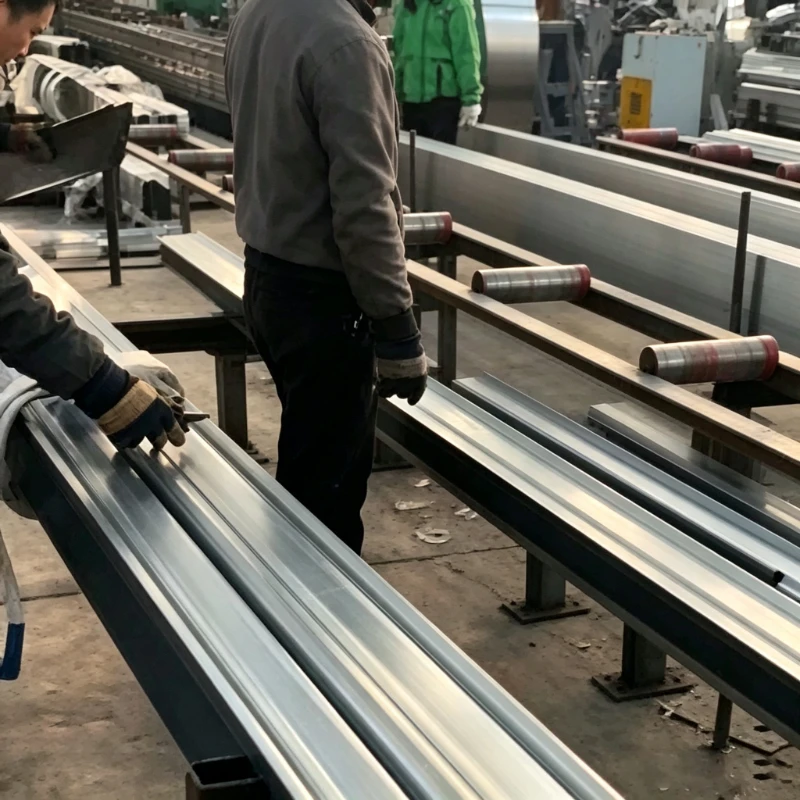

Step 4：Packaging
Qualified gutters are bundled, labeled, and packaged per order requirements. Protective materials are used to prevent surface scratches during transportation. Packed goods are stored in warehouse ready for shipment.
Custom Solar Panel Mounts Options
You can flexibly customize the material, coating, length, height, width, thickness, style, and color of the rooftop photovoltaic bracket.
Material
Common material options include aluminium alloy, stainless steel, and galvanized steel, all sourced from reputable domestic suppliers. The material type can be customized to match specific environmental conditions and structural load requirements.
Coating
A broad selection of anti-corrosion coatings is available, including hot-dip galvanizing, zinc-aluminium-magnesium, spray painting, and baking paint, to suit different environmental conditions.
Style
The bracket structure is sturdy and durable, with customizable design options to fit project needs, and offers a service life of up to 25 years.
Thickness
Thickness can be customized to accommodate various load-bearing requirements across different installation sites.
Height
Height can be flexibly adjusted, with our technical team providing professional guidance to meet specific site clearance or elevation requirements.
Color
Multiple spray-paint colors are offered, allowing the system to blend seamlessly with surrounding environments or architectural aesthetics.
Can’t Find the Product You’re Looking For?
Contact our team to explore additional products, custom options, and tailored solutions.
